TRANSFER


id031600140100


Purpose, Function

•  A transfer with simple, one-axis construction has been adopted for size and weight reduction.
•  By changing the bearings in the transfer from taper roller bearings to ball bearings/tandem ball bearings, rolling resistance is reduced and fuel economy is improved.
•  Vibration is reduced by the damper installed to the transfer. Due to this, energy consumed for reducing vibration is not required and improved fuel economy has been realized.

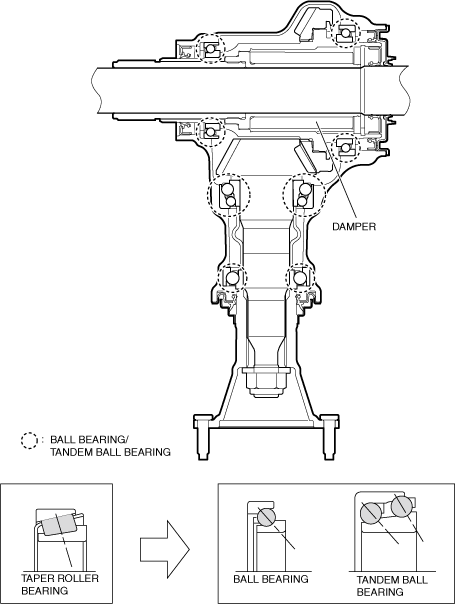

Cross-sectional View

am3zzn00010414
