FRONT BRAKE DISC REMOVAL/INSTALLATION [(E)]

id041100000199

Warning

•  If the vehicle is driven without ending maintenance mode, it could result in an accident. After performing the maintenance mode work, always end maintenance mode. (With Mazda M Hybrid)

Caution

•  When performing the procedure while the vehicle is on the ground, block the front and rear wheels using wheel blocks. Otherwise, the vehicle may move when the electric parking brake is released. (With Mazda M Hybrid)

1.  Switch to the maintenance mode. (With Mazda M Hybrid) (See MAINTENANCE MODE [(E)].)

2.  Remove the wheel and tire. (See WHEEL AND TIRE REMOVAL/INSTALLATION.)

3.  Remove in the order indicated in the table.

4.  Install in the reverse order of removal.

5.  End the maintenance mode. (With Mazda M Hybrid) (See MAINTENANCE MODE [(E)].)

6.  Depress the brake pedal a few times, rotate the wheel by hand, and verify that the brake does not drag.

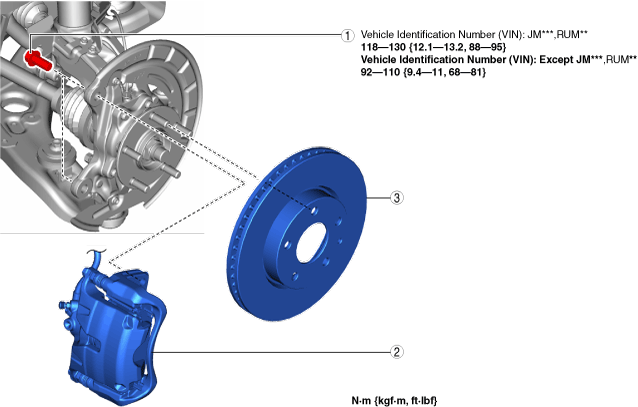

am3zzw00038577

1	Bolt
2	Front brake caliper component (See Front Brake Caliper Component Removal Note.) (See Front Brake Caliper Component Installation Note.)
3	Disc plate

Front Brake Caliper Component Removal Note

1.  Remove the front brake caliper component and suspend it in a place out of the way using a cable.

am3zzw00022399

Front Brake Caliper Component Installation Note

1.  Push the piston in using the commercially available disc brake expand tool.

am3zzw00022400

2.  Install the front brake caliper component.
