FRONT BRAKE CALIPER REMOVAL/INSTALLATION [(E)]

id041100000399

Replacement Part

Oil and Chemical Type

Warning

•  If the vehicle is driven without ending maintenance mode, it could result in an accident. After performing the maintenance mode work, always end maintenance mode. (With Mazda M Hybrid)

Caution

•  Brake fluid will damage painted surfaces. Be careful not to spill any on painted surfaces. In addition, if there is any brake fluid on the wiring harness, the wire insulation may corrode causing a malfunction such as a short circuit. If brake fluid gets on a painted surface or wiring harness, wash and flush it off completely with water immediately.

•  When performing the procedure while the vehicle is on the ground, block the front and rear wheels using wheel blocks. Otherwise, the vehicle may move when the electric parking brake is released. (With Mazda M Hybrid)

1.  Switch to the maintenance mode. (With Mazda M Hybrid) (See MAINTENANCE MODE [(E)].)

2.  Remove the wheel and tire. (See WHEEL AND TIRE REMOVAL/INSTALLATION.)

3.  Remove in the order indicated in the table.

4.  Install in the reverse order of removal.

5.  End the maintenance mode. (With Mazda M Hybrid) (See MAINTENANCE MODE [(E)].)

6.  After installation, add brake fluid, bleed the air, and inspect for fluid leakage. (See BRAKE FLUID AIR BLEEDING [(E)].)

7.  Depress the brake pedal a few times, rotate the wheel by hand, and verify that the brake does not drag.

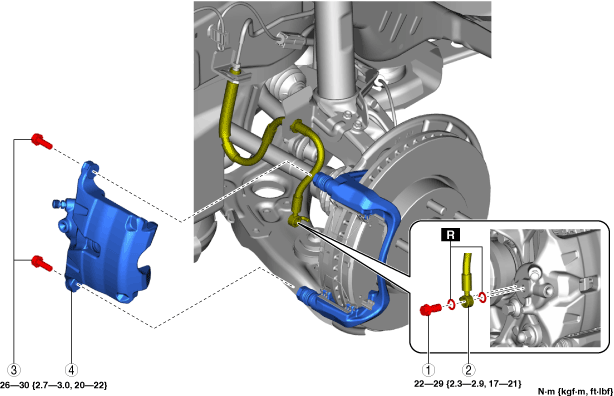

am3zzw00031273

1	Bolt
2	Brake hose
3	Bolt
4	Front brake caliper (See Front Brake Caliper Installation Note.)

Front Brake Caliper Installation Note

1.  Clean the exposed area of the piston.

2.  Push the piston in using the commercially available disc brake expand tool.

am3zzw00022407

3.  Install the front brake caliper.
