PARKING BRAKE SYSTEM LOCATION INDEX [(E)]

id0412008001x2

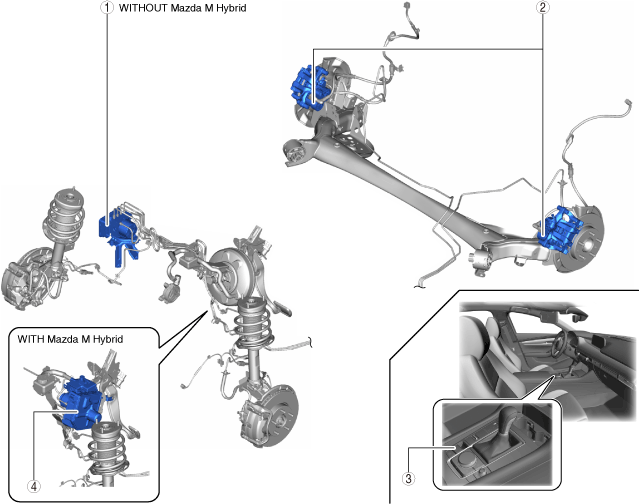

L.H.D.

am3zzw00035478

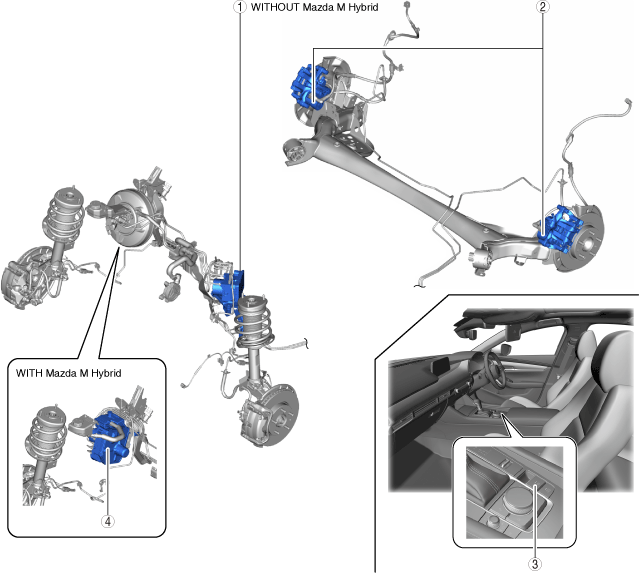

R.H.D.

am3zzw00035479

1	DSC HU/CM (See DSC HU/CM REMOVAL/INSTALLATION [L.H.D. (E)].) (See DSC HU/CM REMOVAL/INSTALLATION [R.H.D.].) (See DSC HU/CM INSPECTION.) (See MAINTENANCE MODE [(E)].)
2	Electric parking brake motor gear unit (See ELECTRIC PARKING BRAKE MOTOR GEAR UNIT REMOVAL/INSTALLATION.) (See ELECTRIC PARKING BRAKE MOTOR GEAR UNIT INSPECTION [(E)].) (See ELECTRIC PARKING BRAKE FORCED RELEASE PROCEDURE.)
3	Electric parking brake switch (See ELECTRIC PARKING BRAKE SWITCH REMOVAL/INSTALLATION.) (See ELECTRIC PARKING BRAKE SWITCH INSPECTION.)
4	Electronically controlled brake unit (See ELECTRONICALLY CONTROLLED BRAKE UNIT REMOVAL/INSTALLATION [L.H.D.].) (See ELECTRONICALLY CONTROLLED BRAKE UNIT REMOVAL/INSTALLATION [R.H.D.].) (See ELECTRONICALLY CONTROLLED BRAKE UNIT INSPECTION.) (See MAINTENANCE MODE [(E)].)
