DYNAMIC STABILITY CONTROL LOCATION INDEX [(E)]

id0415008005x2

Vehicle Front Side (L.H.D.)

am3zzw00034290

1	DSC HU/CM (See DSC HU/CM REMOVAL/INSTALLATION [L.H.D. (E)].) (See DSC RELATED PARTS SENSOR INITIALIZATION PROCEDURE [(E)].) (See DSC HU/CM INSPECTION.)
2	Brake fluid pressure sensor (built-into DSC HU/CM) (See BRAKE FLUID PRESSURE SENSOR INSPECTION [(E)].) (See DSC RELATED PARTS SENSOR INITIALIZATION PROCEDURE [(E)].)
3	Front ABS wheel-speed sensor (See FRONT ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION.) (See FRONT ABS WHEEL-SPEED SENSOR INSPECTION.)
4	DSC OFF switch (See DSC OFF SWITCH REMOVAL/INSTALLATION.) (See DSC OFF SWITCH INSPECTION.)
5	AUTO HOLD switch (See AUTO HOLD SWITCH REMOVAL/INSTALLATION.) (See AUTO HOLD SWITCH INSPECTION.)

Vehicle Front Side (R.H.D.)

am3zzw00034291

1	DSC HU/CM (See DSC HU/CM REMOVAL/INSTALLATION [R.H.D.].) (See DSC RELATED PARTS SENSOR INITIALIZATION PROCEDURE [(E)].) (See DSC HU/CM INSPECTION.)
2	Brake fluid pressure sensor (built-into DSC HU/CM) (See BRAKE FLUID PRESSURE SENSOR INSPECTION [(E)].) (See DSC RELATED PARTS SENSOR INITIALIZATION PROCEDURE [(E)].)
3	Front ABS wheel-speed sensor (See FRONT ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION.) (See FRONT ABS WHEEL-SPEED SENSOR INSPECTION.)
4	DSC OFF switch (See DSC OFF SWITCH REMOVAL/INSTALLATION.) (See DSC OFF SWITCH INSPECTION.)
5	AUTO HOLD switch (See AUTO HOLD SWITCH REMOVAL/INSTALLATION.) (See AUTO HOLD SWITCH INSPECTION.)

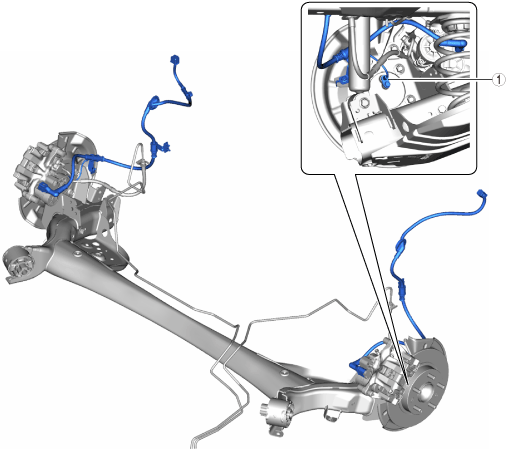

Vehicle Rear Side

am3zzw00035480

1	Rear ABS wheel-speed sensor (See REAR ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION.) (See REAR ABS WHEEL-SPEED SENSOR INSPECTION [2WD].)
