ELECTRONICALLY CONTROLLED BRAKE SYSTEM LOCATION INDEX

id042000100100

Vehicle Front Side

L.H.D.

am3zzw00034299

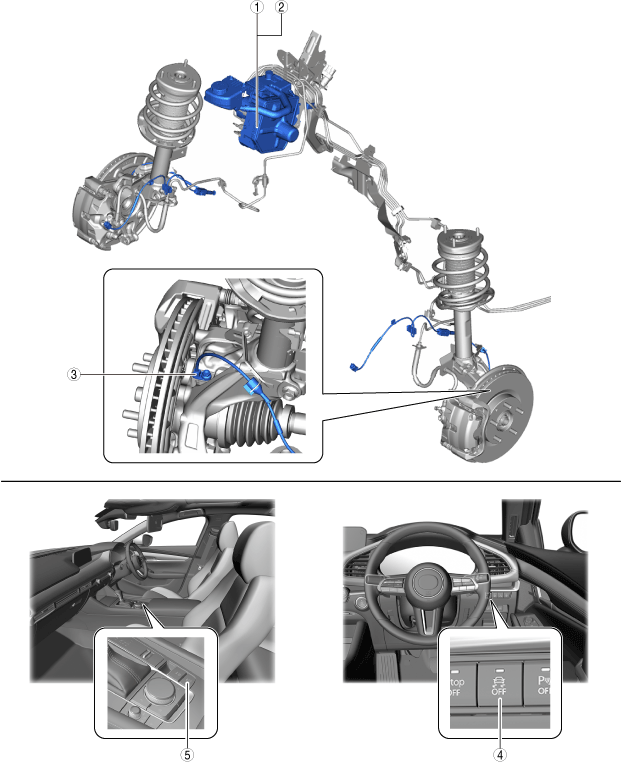

R.H.D.

am3zzw00034300

1	Electronically controlled brake unit (See ELECTRONICALLY CONTROLLED BRAKE UNIT REMOVAL/INSTALLATION [L.H.D.].) (See ELECTRONICALLY CONTROLLED BRAKE UNIT REMOVAL/INSTALLATION [R.H.D.]) (See DSC RELATED PARTS SENSOR INITIALIZATION PROCEDURE [(E)].) (See ELECTRONICALLY CONTROLLED BRAKE UNIT INSPECTION)
2	Brake fluid pressure sensor (built-into electronically controlled brake unit) (See BRAKE FLUID PRESSURE SENSOR INSPECTION [(E)].) (See DSC RELATED PARTS SENSOR INITIALIZATION PROCEDURE [(E)].)
3	Front ABS wheel-speed sensor (See FRONT ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION.) (See FRONT ABS WHEEL-SPEED SENSOR INSPECTION.)
4	DSC OFF switch (See DSC OFF SWITCH REMOVAL/INSTALLATION.) (See DSC OFF SWITCH INSPECTION.)
5	AUTO HOLD switch (See AUTO HOLD SWITCH REMOVAL/INSTALLATION.) (See AUTO HOLD SWITCH INSPECTION.)

Vehicle Rear Side

am3zzw00035483

1	Rear ABS wheel-speed sensor (See REAR ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION.) (See REAR ABS WHEEL-SPEED SENSOR INSPECTION [2WD].) (See REAR ABS WHEEL-SPEED SENSOR INSPECTION [AWD].)
