TRANSMISSION/TRANSAXLE [(E)]

id0500001009x2

Features

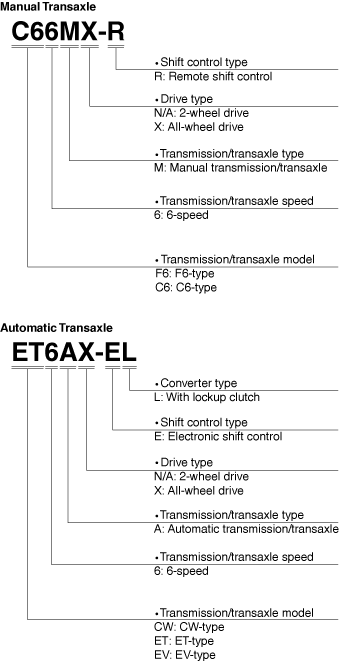

Clutch and Manual Transaxle [F66M-R] [C66M-R, C66MX-R]

• A newly developed, F66M-R-type and C66M(X)-R-type manual transaxle (SKYACTIV-MT) with 6 forward gears and 1 reverse gear has been adopted.

Automatic Transaxle [CW6A-EL] [ET6A-EL, ET6AX-EL] [EV6A-EL]

• A newly developed, CW6A-EL-type, ET6A(X)-EL-type and EV6A-EL-type electronically controlled automatic transaxle (SKYACTIV-DRIVE) with 6 forward gears, 1 reverse gear, and a TCC mechanism has been adopted.

• Using the existing automatic transaxle as a base, fuel economy improvement, direct feel, and smooth shifting have been thoroughly pursued to make one of the most optimized automatic transaxle.

Main features

― With the adoption of a full range TCC mechanism, a contribution to low fuel consumption and the direct feel of a manual transaxle have been achieved.

― A control valve body has been adopted with an integrated TCM and improved responsiveness to achieve smooth and precise shifting.

Specifications

Clutch [F66M-R]

Item

Specifications

Engine type

SKYACTIV-G 1.5

Clutch control

Hydraulic

Clutch pedal

Type

Suspended design

Pedal ratio

4.7

Full stroke (reference)

(mm {in})

151.3 {5.957}

Clutch master cylinder inner diameter

(mm {in})

15.9 {0.626}

Clutch release cylinder inner diameter

(mm {in})

20.64 {0.8126}

Clutch cover

Spring type

Diaphragm

Set load

(N {kgf, lbf})

Except Chinese specs.: 4,800 {489.5, 1,079}

Chinese specs.: 5,000 {509.9, 1,124}

Clutch disc

Outer diameter

(mm {in})

215 {8.46}

Inner diameter

(mm {in})

Except Chinese specs.: 155 {6.10}

Chinese specs.: 132 {5.20}

Clutch fluid type

SAE J1703 or FMVSS116 DOT-3 or DOT-4

Item	Specifications
Clutch control	Hydraulic
Clutch pedal	Type	Suspended design
Pedal ratio	4.7
Full stroke (reference)	(mm {in})	151.3 {5.957}
Clutch master cylinder inner diameter	(mm {in})	15.9 {0.626}
Clutch release cylinder inner diameter	(mm {in})	20.64 {0.8126}
Clutch cover	Spring type	Diaphragm
Set load	(N {kgf, lbf})	Except Chinese specs.: 4,800 {489.5, 1,079} Chinese specs.: 5,000 {509.9, 1,124}
Clutch disc	Outer diameter	(mm {in})	215 {8.46}
Inner diameter	(mm {in})	Except Chinese specs.: 155 {6.10} Chinese specs.: 132 {5.20}
Clutch fluid type	SAE J1703 or FMVSS116 DOT-3 or DOT-4

Clutch [C66M-R, C66MX-R]

Item

Specifications

Engine type

SKYACTIV-G 2.0

SKYACTIV-G 2.5

SKYACTIV-D 1.8

SKYACTIV-X 2.0

Clutch control

Hydraulic

Clutch pedal

Type

Suspended

Pedal ratio

4.7

Full stroke (Reference value)

(mm {in})

151.3 {5.957}

Clutch master cylinder inner diameter

(mm {in})

15.9 {0.626}

Clutch release cylinder inner diameter

(mm {in})

20.64 {0.8126}

Clutch cover

Spring type

Diaphragm

Set load

(N {kgf, lbf})

6,400 {652.6, 1,439}

7,000 {713.8, 1,574}

6,400 {652.6, 1,439}

Clutch disc

Outer diameter

(mm {in})

239 {9.41}

Inner diameter

(mm {in})

155 {6.10}

Clutch fluid type

Without Mazda M Hybrid

SAE J1703 or FMVSS116 DOT-3 or DOT-4

—

With Mazda M Hybrid

Mazda Genuine Brake Fluid or equivalent

—

Mazda Genuine Brake Fluid or equivalent

Item	Specifications
Clutch control	Hydraulic
Clutch pedal	Type	Suspended
Pedal ratio	4.7
Full stroke (Reference value)	(mm {in})	151.3 {5.957}
Clutch master cylinder inner diameter	(mm {in})	15.9 {0.626}
Clutch release cylinder inner diameter	(mm {in})	20.64 {0.8126}
Clutch cover	Spring type	Diaphragm
Set load	(N {kgf, lbf})	6,400 {652.6, 1,439}	7,000 {713.8, 1,574}	6,400 {652.6, 1,439}
Clutch disc	Outer diameter	(mm {in})	239 {9.41}
Inner diameter	(mm {in})	155 {6.10}
Clutch fluid type	Without Mazda M Hybrid	SAE J1703 or FMVSS116 DOT-3 or DOT-4	—
With Mazda M Hybrid	Mazda Genuine Brake Fluid or equivalent	—	Mazda Genuine Brake Fluid or equivalent

Manual Transaxle [F66M-R]

Item

Specifications

Engine type

SKYACTIV-G 1.5

Transaxle control

Floor-shift

Operation system

Cable

Shift assist

Forward

Synchromesh

Reverse

Constant mesh

Gear ratio

1GR

3.583

2GR

1.904

3GR

1.290

4GR

1.028

5GR

0.837

6GR

0.680

Reverse

3.416

Final gear ratio

4.388

Manual transaxle oil

Grade

Mazda Long Life Gear Oil G7^*1

Capacity

(approx. quantity)

(L {US qt, Imp qt})

1.59 {1.68, 1.40}

Item	Specifications
Transaxle control	Floor-shift
Operation system	Cable
Shift assist	Forward	Synchromesh
Reverse	Constant mesh
Gear ratio	1GR	3.583
2GR	1.904
3GR	1.290
4GR	1.028
5GR	0.837
6GR	0.680
Reverse	3.416
Final gear ratio	4.388
Manual transaxle oil	Grade	Mazda Long Life Gear Oil G7^*1
Capacity (approx. quantity)	(L {US qt, Imp qt})	1.59 {1.68, 1.40}

*1 :Mazda Long Life Gear Oil G7 is superior oil for low fuel cost and optimum shift-feel. Using Mazda Long Life Gear Oil G7 is recommended. If Mazda Long Life Gear Oil G7 cannot be obtained, use standard oil (API Service GL-4 (SAE 75W-80)).

Manual Transaxle [C66M-R, C66MX-R]

Item

Specifications

Engine type

SKYACTIV-G 2.0

SKYACTIV-G 2.5

SKYACTIV-D 1.8

SKYACTIV-X 2.0

Transaxle control

Floor-shift

Operation system

Cable

Shift assist

Forward

Synchromesh

Reverse

Synchromesh

Gear ratio

1GR

3.363

3.700

3.272

2GR

1.947

3GR

1.300

1.379

4GR

1.029

0.916

1.090

5GR

0.837

0.717

0.880

6GR

0.680

0.580

0.680

Reverse

3.385

3.724

3.385

Final gear ratio

With cylinder deactivation: 3.850

Without cylinder deactivation: 4.105

3.850

Manual transaxle oil

Grade

Mazda Long Life Gear Oil G7^*1

Capacity

(Approx. quantity)

(L {US qt, Imp qt})

1.70 {1.80, 1.50}

1.65 {1.74, 1.45}

1.70 {1.80, 1.50}

Item	Specifications
Transaxle control	Floor-shift
Operation system	Cable
Shift assist	Forward	Synchromesh
Reverse	Synchromesh
Gear ratio	1GR	3.363	3.700	3.272
2GR	1.947
3GR	1.300	1.379
4GR	1.029	0.916	1.090
5GR	0.837	0.717	0.880
6GR	0.680	0.580	0.680
Reverse	3.385	3.724	3.385
Final gear ratio	With cylinder deactivation: 3.850 Without cylinder deactivation: 4.105	3.850
Manual transaxle oil	Grade	Mazda Long Life Gear Oil G7^*1
Capacity (Approx. quantity)	(L {US qt, Imp qt})	1.70 {1.80, 1.50}	1.65 {1.74, 1.45}	1.70 {1.80, 1.50}

Automatic Transaxle [CW6A-EL]

Item

Specifications

Engine type

SKYACTIV-G 1.5

Gear ratio

1GR

3.529

2GR

2.025

3GR

1.348

4GR

1.000

5GR

0.742

6GR

0.594

Reverse

2.994

Final gear ratio

4.605

ATF

Type

ATF FZ

Capacity

(Approx. quantity)

(L {US qt, lmp qt})

7.2 {7.6, 6.3}

Torque converter stall torque ratio

2.22

Hydraulic system

(Number of drive/driven gear plates)

Low clutch

3/3

High clutch

4/4

Low and reverse brake

4/4

2-6 brake

3/3

R-3-5 brake

2/2

Front planetary gear

(Number of teeth)

Front sun gear

34

Front pinion gear

26

Front internal gear

86

Rear planetary gear

(Number of teeth)

Rear sun gear

37

Rear pinion gear

26

Rear internal gear

89

Reduction planetary gear

(Number of teeth)

Reduction sun gear

49

Reduction pinion gear No.1

22

Reduction pinion gear No.2

23

Reduction internal gear

100

Primary gear (number of teeth)

41

Secondary gear (number of teeth)

46

Output gear (number of teeth)

19

Ring gear (number of teeth)

78

Item	Specifications
Gear ratio	1GR	3.529
2GR	2.025
3GR	1.348
4GR	1.000
5GR	0.742
6GR	0.594
Reverse	2.994
Final gear ratio	4.605
ATF	Type	ATF FZ
Capacity (Approx. quantity)	(L {US qt, lmp qt})	7.2 {7.6, 6.3}
Torque converter stall torque ratio	2.22
Hydraulic system (Number of drive/driven gear plates)	Low clutch	3/3
High clutch	4/4
Low and reverse brake	4/4
2-6 brake	3/3
R-3-5 brake	2/2
Front planetary gear (Number of teeth)	Front sun gear	34
Front pinion gear	26
Front internal gear	86
Rear planetary gear (Number of teeth)	Rear sun gear	37
Rear pinion gear	26
Rear internal gear	89
Reduction planetary gear (Number of teeth)	Reduction sun gear	49
Reduction pinion gear No.1	22
Reduction pinion gear No.2	23
Reduction internal gear	100
Primary gear (number of teeth)	41
Secondary gear (number of teeth)	46
Output gear (number of teeth)	19
Ring gear (number of teeth)	78

Automatic Transaxle [ET6A-EL, ET6AX-EL]

Item

Specifications

Engine type

SKYACTIV-G 2.0

SKYACTIV-G 2.5

SKYACTIV-D 1.8

SKYACTIV-X 2.0

Gear ratio

1GR

3.552

2GR

2.022

3GR

1.347

4GR

1.000

5GR

0.745

6GR

0.599

Reverse

3.052

Final gear ratio

European (L.H.D.) specs., Chinese specs.: 4.367

Except European (L.H.D.) specs., Chinese specs.: 3.850

3.850

4.095

4.367

ATF

Type

ATF FZ

ATF A7

Capacity

(Approx. quantity)

(L {US qt, lmp qt})

7.6 {8.0, 6.7}

Torque converter stall torque ratio

1.82

1.74

1.82

1.85

Hydraulic system

(Number of drive/driven gear plates)

Low clutch

5/5

High clutch

5/5

Low and reverse brake

4/4

2-6 brake

4/3

R-3-5 brake

3/3

Front planetary gear

(Number of teeth)

Front sun gear

38

Front pinion gear

29

Front internal gear

97

Rear planetary gear

(Number of teeth)

Rear sun gear

40

Rear pinion gear

27

Rear internal gear

95

Reduction planetary gear

(Number of teeth)

Reduction sun gear

49

Reduction pinion gear No.1

23

Reduction pinion gear No.2

22

Reduction internal gear

100

Primary gear (Number of teeth)

47

Secondary gear (Number of teeth)

50

Output gear (Number of teeth)

European (L.H.D.) specs., Chinese specs.: 19

Except European (L.H.D.) specs., Chinese specs.: 21

21

20

19

Ring gear (Number of teeth)

European (L.H.D.) specs., Chinese specs.: 78

Except European (L.H.D.) specs., Chinese specs.: 76

76

77

78

Item	Specifications
Gear ratio	1GR	3.552
2GR	2.022
3GR	1.347
4GR	1.000
5GR	0.745
6GR	0.599
Reverse	3.052
Final gear ratio	European (L.H.D.) specs., Chinese specs.: 4.367 Except European (L.H.D.) specs., Chinese specs.: 3.850	3.850	4.095	4.367
ATF	Type	ATF FZ	ATF A7
Capacity (Approx. quantity)	(L {US qt, lmp qt})	7.6 {8.0, 6.7}
Torque converter stall torque ratio	1.82	1.74	1.82	1.85
Hydraulic system (Number of drive/driven gear plates)	Low clutch	5/5
High clutch	5/5
Low and reverse brake	4/4
2-6 brake	4/3
R-3-5 brake	3/3
Front planetary gear (Number of teeth)	Front sun gear	38
Front pinion gear	29
Front internal gear	97
Rear planetary gear (Number of teeth)	Rear sun gear	40
Rear pinion gear	27
Rear internal gear	95
Reduction planetary gear (Number of teeth)	Reduction sun gear	49
Reduction pinion gear No.1	23
Reduction pinion gear No.2	22
Reduction internal gear	100
Primary gear (Number of teeth)	47
Secondary gear (Number of teeth)	50
Output gear (Number of teeth)	European (L.H.D.) specs., Chinese specs.: 19 Except European (L.H.D.) specs., Chinese specs.: 21	21	20	19
Ring gear (Number of teeth)	European (L.H.D.) specs., Chinese specs.: 78 Except European (L.H.D.) specs., Chinese specs.: 76	76	77	78

Automatic Transaxle [EV6A-EL]

Item

Specifications

Engine type

SKYACTIV-G 2.0

SKYACTIV-G 2.5

Gear ratio

1GR

3.552

2GR

2.022

3GR

1.347

4GR

1.000

5GR

0.745

6GR

0.599

Reverse

3.052

Final gear ratio

4.095

3.850

ATF

Type

ATF FZ

Capacity

(Approx. quantity)

(L {US qt, lmp qt})

7.9 {8.3, 7.0}

Torque converter stall torque ratio

1.76

1.74

Hydraulic system

(Number of drive/driven gear plates)

Low clutch

5/5

High clutch

5/5

Low and reverse brake

4/4

2-6 brake

4/3

R-3-5 brake

3/3

Front planetary gear

(Number of teeth)

Front sun gear

38

Front pinion gear

29

Front internal gear

97

Rear planetary gear

(Number of teeth)

Rear sun gear

40

Rear pinion gear

27

Rear internal gear

95

Reduction planetary gear

(Number of teeth)

Reduction sun gear

49

Reduction pinion gear No.1

23

Reduction pinion gear No.2

22

Reduction internal gear

100

Primary gear (Number of teeth)

47

Secondary gear (Number of teeth)

50

Output gear (Number of teeth)

20

21

Ring gear (Number of teeth)

77

76

Item	Specifications
Gear ratio	1GR	3.552
2GR	2.022
3GR	1.347
4GR	1.000
5GR	0.745
6GR	0.599
Reverse	3.052
Final gear ratio	4.095	3.850
ATF	Type	ATF FZ
Capacity (Approx. quantity)	(L {US qt, lmp qt})	7.9 {8.3, 7.0}
Torque converter stall torque ratio	1.76	1.74
Hydraulic system (Number of drive/driven gear plates)	Low clutch	5/5
High clutch	5/5
Low and reverse brake	4/4
2-6 brake	4/3
R-3-5 brake	3/3
Front planetary gear (Number of teeth)	Front sun gear	38
Front pinion gear	29
Front internal gear	97
Rear planetary gear (Number of teeth)	Rear sun gear	40
Rear pinion gear	27
Rear internal gear	95
Reduction planetary gear (Number of teeth)	Reduction sun gear	49
Reduction pinion gear No.1	23
Reduction pinion gear No.2	22
Reduction internal gear	100
Primary gear (Number of teeth)	47
Secondary gear (Number of teeth)	50
Output gear (Number of teeth)	20	21
Ring gear (Number of teeth)	77	76

Identification

• Each Transmission/Transaxle is assigned a specific Mazda type code. The code can be broken down as follows:

am3zzn00009428

Item			Specifications
Engine type			SKYACTIV-G 1.5
Clutch control			Hydraulic
Clutch pedal	Type		Suspended design
	Pedal ratio		4.7
	Full stroke (reference)	(mm {in})	151.3 {5.957}
Clutch master cylinder inner diameter		(mm {in})	15.9 {0.626}
Clutch release cylinder inner diameter		(mm {in})	20.64 {0.8126}
Clutch cover	Spring type		Diaphragm
Clutch cover	Set load	(N {kgf, lbf})	Except Chinese specs.: 4,800 {489.5, 1,079} Chinese specs.: 5,000 {509.9, 1,124}
Clutch disc	Outer diameter	(mm {in})	215 {8.46}
Clutch disc	Inner diameter	(mm {in})	Except Chinese specs.: 155 {6.10} Chinese specs.: 132 {5.20}
Clutch fluid type			SAE J1703 or FMVSS116 DOT-3 or DOT-4

Item			Specifications
Engine type			SKYACTIV-G 2.0	SKYACTIV-G 2.5	SKYACTIV-D 1.8	SKYACTIV-X 2.0
Clutch control			Hydraulic
Clutch pedal	Type		Suspended
	Pedal ratio		4.7
	Full stroke (Reference value)	(mm {in})	151.3 {5.957}
Clutch master cylinder inner diameter		(mm {in})	15.9 {0.626}
Clutch release cylinder inner diameter		(mm {in})	20.64 {0.8126}
Clutch cover	Spring type		Diaphragm
Clutch cover	Set load	(N {kgf, lbf})	6,400 {652.6, 1,439}	7,000 {713.8, 1,574}		6,400 {652.6, 1,439}
Clutch disc	Outer diameter	(mm {in})	239 {9.41}
Clutch disc	Inner diameter	(mm {in})	155 {6.10}
Clutch fluid type		Without Mazda M Hybrid	SAE J1703 or FMVSS116 DOT-3 or DOT-4			—
Clutch fluid type		With Mazda M Hybrid	Mazda Genuine Brake Fluid or equivalent	—		Mazda Genuine Brake Fluid or equivalent
