CLUTCH [C66M-R, C66MX-R]

id0510mc283600

Purpose, Function

• The clutch unit transmits or cuts the drive force between the engine and MTX according to the clutch pedal operation.

Construction/Operation

• The construction/operation of the clutch unit is the same as the original MTX (ex: G66M-R).

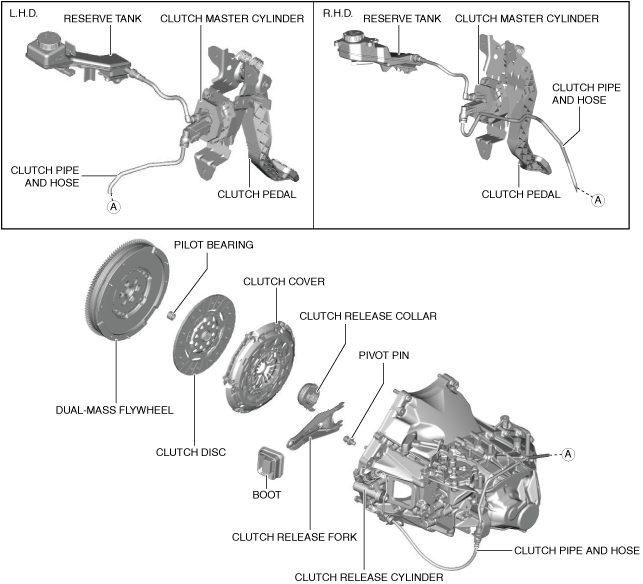

Without Mazda M Hybrid

am3zzn00009433

With Mazda M Hybrid

am3zzn00009434
