MANUAL TRANSAXLE OIL INSPECTION [C66M-R, C66MX-R]

id0515ma159600

Replacement Part

Gasket

Quantity: 1

Location of use: Oil level plug

Oil and Chemical Type

Manual transaxle oil

Type: MAZDA LONG LIFE GEAR OIL G7

1.  Park the vehicle on level ground.

2.  Remove the front under cover No.2. (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)

3.  Remove the bolts and set the wiring harness and wiring harness bracket in a place which does not interfere with servicing.

am3zzw00035156

4.  Remove the oil level plug and gasket.

am3zzw00022322

5.  Verify that the manual transaxle oil is within the range shown in the figure.

•  If it is not within the range, adjust the manual transaxle oil level.

Specified manual transaxle oil
MAZDA LONG LIFE GEAR OIL G7*1

*1  :Mazda Long Life Gear Oil G7 is superior oil for low fuel cost and optimum shift-feel. Using Mazda Long Life Gear Oil G7 is recommended. If Mazda Long Life Gear Oil G7 cannot be obtained, use standard oil (API Service GL-4 (SAE 75W-80)).

6.  Install a new gasket and the oil level plug.

am3zzw00031496

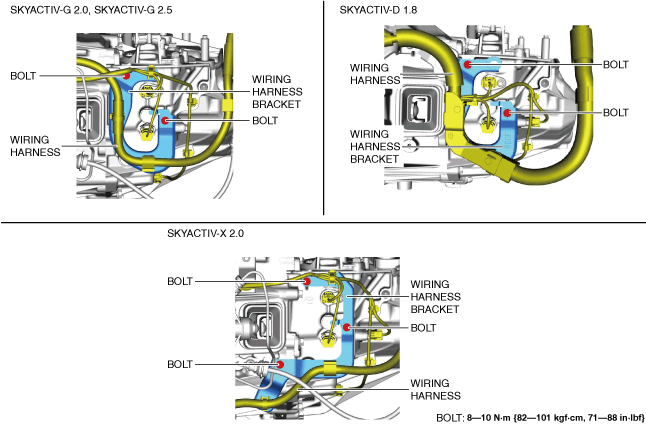

7.  Connect the wiring harness bracket to the manual transaxle.

am3zzw00035157

8.  Install the front under cover No.2. (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)
