MANUAL TRANSAXLE OIL REPLACEMENT [F66M-R]

id0515n2159700

Replacement Part

Gasket

Quantity: 1

Location of use: Drain plug
Gasket

Quantity: 1

Location of use: Oil level plug

Oil and Chemical Type

Manual transaxle oil

Type: MAZDA LONG LIFE GEAR OIL G7

1.  Park the vehicle on level ground.

2.  Remove the front under cover No.2. (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)

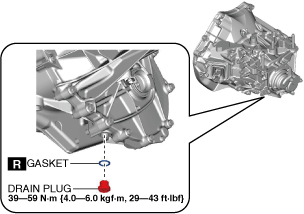

3.  Remove the drain plug and gasket, and drain the manual transaxle oil.

am3zzw00024659

4.  Install a new gasket and the drain plug.

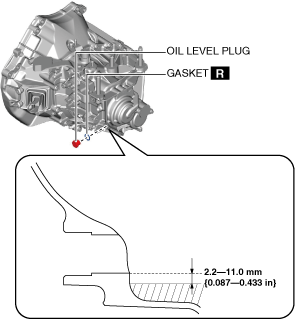

5.  Remove the oil level plug and gasket.

am3zzw00024660

6.  Add the specified amount of manual transaxle oil through the oil level plug hole.

Specified manual transaxle oil

Manual transaxle oil capacity (approx. quantity)
MAZDA LONG LIFE GEAR OIL G7*1
1.59 L {1.68 US qt, 1.40 Imp qt}

*1  :Mazda Long Life Gear Oil G7 is superior oil for low fuel cost and optimum shift-feel. Using Mazda Long Life Gear Oil G7 is recommended. If Mazda Long Life Gear Oil G7 cannot be obtained, use standard oil (API Service GL-4 (SAE 75W-80)).

7.  Install a new gasket and the oil level plug.

am3zzw00031905

8.  Install the front under cover No.2. (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)
