BACK-UP LIGHT SWITCH REMOVAL/INSTALLATION [F66M-R]

id0515n2159900

Replacement Part

Gasket

Quantity: 1

Location of use: Back-up light switch

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Remove the following parts as a single unit. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (E))].)

•  Air cleaner cover
•  Air cleaner element
•  Fresh-air duct
•  Air cleaner case
•  Air hose
•  Resonance chamber

3.  Remove in the order indicated in the table.

4.  Install in the reverse order of removal.

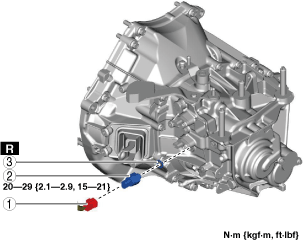

am3zzw00027284

1
Back-up light switch connector
2
Back-up light switch
3
Gasket
