AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT [CW6A-EL]

id0517l1118600

Replacement Part

Washer

Quantity: 1

Location of use: Drain plug

Oil and Chemical Type

ATF

Type: ATF FZ

Warning
•  Do not perform the servicing while the ATF is hot. Otherwise, it could cause severe burns or serious injury.

1.  Remove the front under cover No.1. (See FRONT UNDER COVER No.1 REMOVAL/INSTALLATION.)

2.  Remove the front under cover No.2. (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)

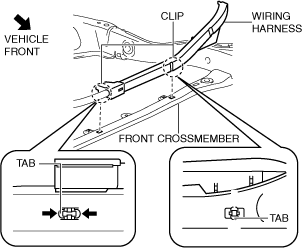

3.  Disconnect the wiring harness from the front crossmember. (With i-ELOOP)

am3zzw00035171

4.  Remove the dipstick securing bolt.

5.  Remove the dipstick.

am3zzw00026424

6.  Remove the drain plug and washer, and drain the ATF.

7.  Install a new washer and drain plug.

am3zzw00032093

8.  Add ATF from the dipstick installation hole.

Note
•  The ATF color is blue.
•  Only use ATF FZ.

ATF type

Resupply amount (Reference)
ATF FZ
ATF is drained from drain plug: 3.0 L {3.2 US qt, 2.6 Imp qt}

9.  Adjust the ATF level. (See AUTOMATIC TRANSAXLE FLUID (ATF) ADJUSTMENT [CW6A-EL].)

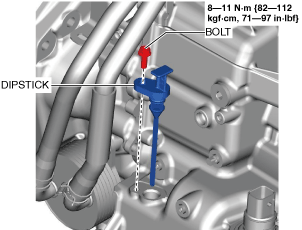

10.  Insert the dipstick and install the securing bolt.

am3zzw00032537

11.  Connect the wiring harness to the front crossmember. (With i-ELOOP)

am3zzw00035172

12.  Install the front under cover No.2. (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)

13.  Install the front under cover No.1. (See FRONT UNDER COVER No.1 REMOVAL/INSTALLATION.)
