AUTOMATIC TRANSAXLE FLUID (ATF) INSPECTION [ET6A-EL, ET6AX-EL]

id0517n3118500

Oil and Chemical Type

Caution

•  If the ATF level is not within the specification or ATF is not adhering to the dipstick after warming up the engine, do not drive the vehicle. Otherwise, the transaxle could be damaged.

ATF Level Inspection

1.  Remove the front under cover No.1. (See FRONT UNDER COVER No.1 REMOVAL/INSTALLATION.)

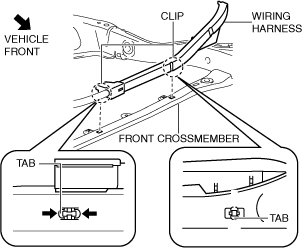

2.  Disconnect the wiring harness from the front crossmember. (With i-ELOOP)

am3zzw00035188

3.  Remove the dipstick securing bolt.

4.  Connect the M-MDS to the DLC-2 and display the TCM PID TFT. (See PID/DATA MONITOR INSPECTION.) (See PID/DATA MONITOR TABLE [TCM (ET6A-EL, ET6AX-EL) (E)].)

5.  Warm up the engine until the ATF temperature is 50 °C {122 °F}.

6.  Remove the dipstick and wipe ATF off using a nylon cloth while leaving the engine idling.

Warning

•  Keep hands and tools away from the cooling fan even if the cooling fan is not operating to prevent injury, or damage to the cooling fan.

•  Do not touch parts which have become heated. Otherwise, it could cause severe burns or serious injury.

am3zzw00031982

7.  Insert the dipstick and pull it out again.

8.  Verify that the ATF is adhering between L and F on the dipstick.

•  If ATF is not adhering between L and F on the dipstick, adjust the ATF level. (See AUTOMATIC TRANSAXLE FLUID (ATF) ADJUSTMENT [ET6A-EL, ET6AX-EL].)

am3zzw00022380

Note

•  The ATF color is blue. (SKYACTIV-G 2.0, SKYACTIV-G 2.5, SKYACTIV-D 1.8)

•  Only use ATF FZ. (SKYACTIV-G 2.0, SKYACTIV-G 2.5, SKYACTIV-D 1.8)

•  The ATF color is red. (SKYACTIV-X 2.0)

•  Use genuine ATF A7. (SKYACTIV-X 2.0)

9.  Insert the dipstick and install the securing bolt.

am3zzw00031982

10.  Connect the wiring harness to the front crossmember. (With i-ELOOP)

am3zzw00035189

11.  Install the front under cover No.1. (See FRONT UNDER COVER No.1 REMOVAL/INSTALLATION.)
