OIL COOLER [ET6A-EL, ET6AX-EL]
id0517n3358100
Purpose/Function
• The oil cooler constantly maintains maximum ATF performance in the transaxle by maintaining an optimum ATF temperature which has the effect of achieving reduced fuel consumption.
Construction/Operation
• The oil cooler performs the following operations according to the ATF temperature condition:
-
― Heating function: Warms the ATF using the radiator coolant to promote an earlier increase in the ATF temperature when its temperature is low. As a result of the earlier temperature increase, the ATF viscosity decreases which reduces drag in the transaxle.
― Cooling function: Cools the ATF using the radiator coolant to maintain optimum conditions and prevent ATF expansion and deterioration.
• A quick release connector has been adopted for the connecting area of water hose No.1. (SKYACTIV-G 2.0, SKYACTIV-G 2.5)

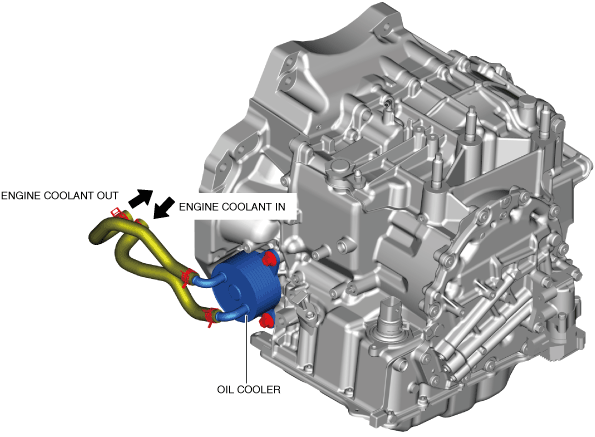

SKYACTIV-G 2.0, SKYACTIV-G 2.5

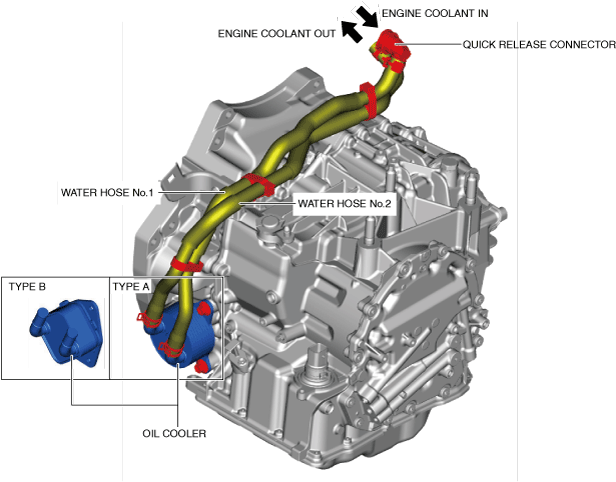

SKYACTIV-D 1.8

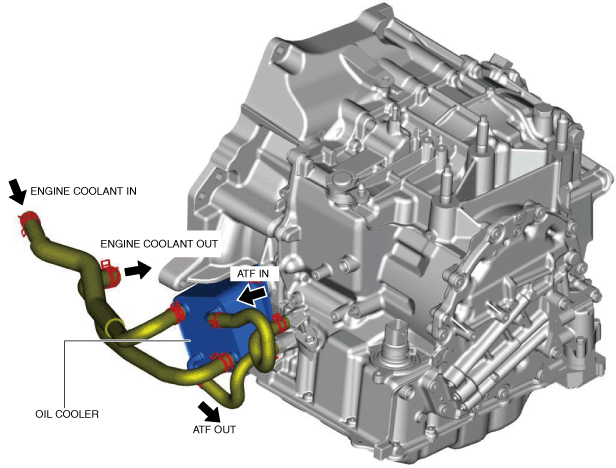

SKYACTIV-X 2.0
