•  The M position switch detects that the selector lever is in the M position.

•  The up switch detects the shift up operation of the selector lever.

•  The down switch detects the shift down operation of the selector lever.

•  The signal for the M position switch, up switch, and down switch is sent to the TCM via CAN and it is used for the manual mode and the engine transaxle integrated control.

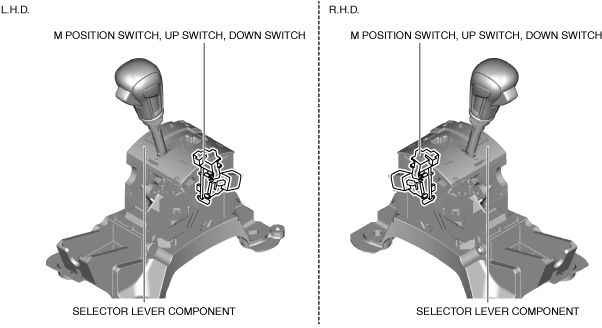

•  The M position switch, up switch, and down switch are built into the selector lever component.

am3zzn00009537

•  The M position switch, up switch, and down switch are on/off type switches.

•  When the selector lever is in the M position, the M position switch contact point closes.

•  By opening and closing the M position switch contact point, the TCM detects that the selector lever is in the M position.

•  When the selector lever is in the shift up position (+), the up switch contact point closes.

•  Based on the opening and closing of the up switch contact point, the TCM detects that the shift up has been operated.

•  When the selector lever is in the shift down position (-), the down switch contact point closes.

•  Based on the opening and closing of the down switch contact point, the TCM detects that the shift down has been operated.
