HYDRAULIC PRESSURE CONTROL SYSTEM OUTLINE [EV6A-EL, EV6AX-EL]

id0517o3355000

Hydraulic Pressure Control System Outline

Outline

•  The hydraulic control mechanism consists of an oil cooler which maintains the hydraulic pressure at the optimum temperature, a control valve body and each shift valve which perform adjustment and circuit switching of the hydraulic pressure based on the control content calculated by the TCM, and the oil pump which generates the hydraulic pressure of each clutch and brake.

Construction

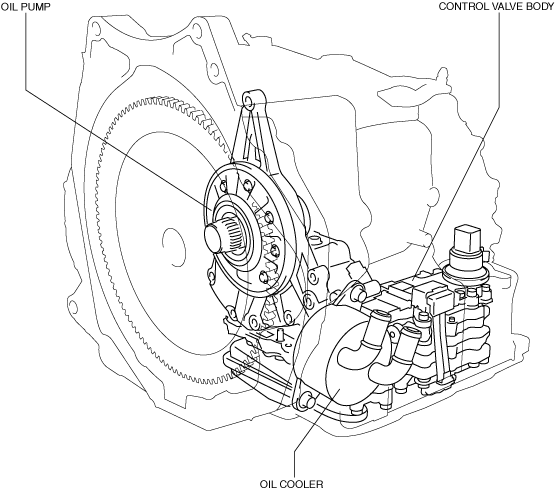

Structural view

am3uun00002253

Oil Strainer

Purpose/function

•  The oil strainer filters particulate matter in the ATF by passing it through the built-in filter.

Construction

•  The oil strainer is a built-in, non-woven fabric filter installed to the position shown in the following figure.

am3uun00002256
