OIL COOLER [EV6A-EL, EV6AX-EL]
id0517o3358100
Purpose/Function
• The oil cooler constantly maintains maximum ATF performance in the transaxle by maintaining an optimum ATF temperature which has the effect of achieving reduced fuel consumption.

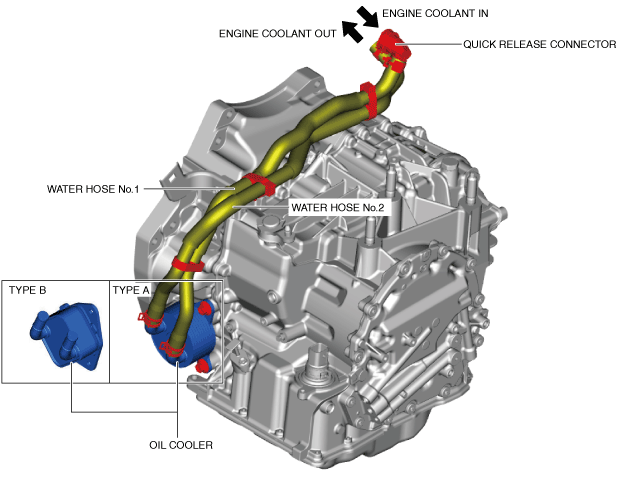

Construction/Operation
• The oil cooler performs the following operations according to the ATF temperature condition:
-
― Heating function: Warms the ATF using the radiator coolant to promote an earlier increase in the ATF temperature when its temperature is low. As a result of the earlier temperature increase, the ATF viscosity decreases which reduces drag in the transaxle.
― Cooling function: Cools the ATF using the radiator coolant to maintain optimum conditions and prevent ATF expansion and deterioration.
• A quick release connector has been adopted for the connecting area of water hose No.1.
