BLOWER MOTOR INSPECTION [(E)]

id0711000060x2

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)])

2.  Remove the blower motor. (See BLOWER MOTOR REMOVAL/INSTALLATION [(E)].)

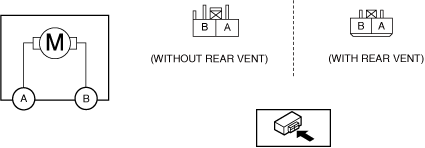

3.  Connect battery positive voltage to blower motor terminal B, connect terminal A to ground, and then verify its operation.

am3zzw00027675

•  If there is any malfunction, replace the blower motor. (See BLOWER MOTOR REMOVAL/INSTALLATION [(E)].)
