MAGNETIC CLUTCH INSPECTION [SKYACTIV-D 1.8]

id0711000065l6

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)])

2.  Disconnect the magnetic clutch connector. (See MAGNETIC CLUTCH ADJUSTMENT [SKYACTIV-D 1.8].)

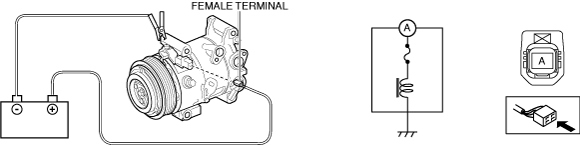

3.  Connect battery to terminal A of magnetic clutch and ground to A/C compressor body.

am3zzw00027677

4.  Verify that the magnetic clutch operates.

•  If there is any malfunction, replace the magnetic clutch. (See MAGNETIC CLUTCH ADJUSTMENT [SKYACTIV-D 1.8].)
