AIR FILTER REMOVAL/INSTALLATION [(E)]

id0711003601x2

Except Chinese specs.

1.  Remove the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

2.  Remove the air filter.

am3zzw00021326

3.  Install in the reverse order of removal. (See Except Chinese specs..)

Air filter installation note

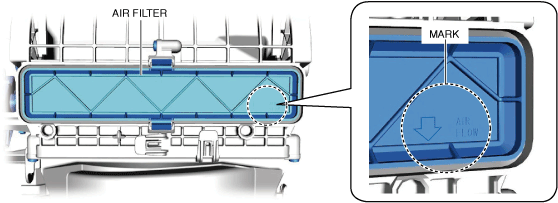

•  Install the air filter with the air filter mark facing the direction shown in the figure.

am3zzw00021327

Chinese specs.

1.  Remove the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

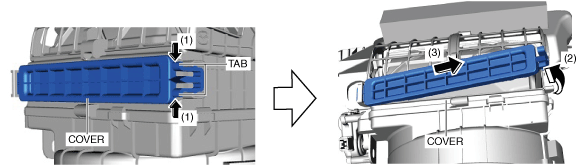

2.  Move the cover in the direction of arrow (2) shown in the figure while pressing the tabs (1).

am3zzw00036009

3.  Remove the cover in the direction of arrow (3) shown in the figure.

4.  Remove the air filter.

am3zzw00036010

5.  Install in the reverse order of removal.
