BLOWER UNIT DISASSEMBLY/ASSEMBLY [(E)]


id0711008006x2


L.H.D. (Except Chinese Specs.)

Caution
•  Apply only the specified grease to the link. Otherwise abnormal noise or improper operation may result.

1.  Disassemble in the order indicated in the table.

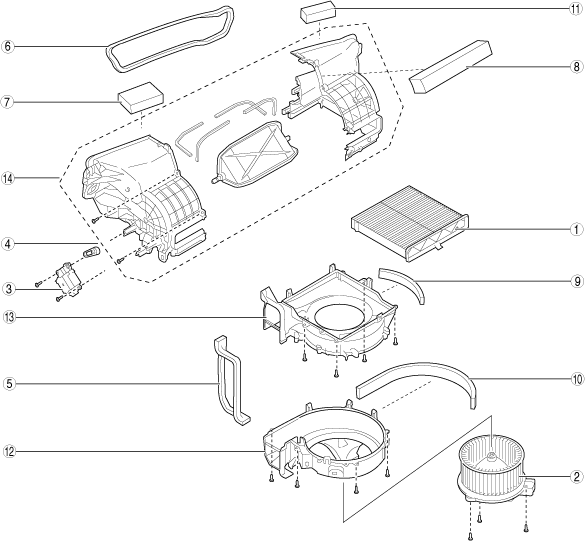

am3zzw00028173

1
Air filter
2
Blower motor
3
Air intake actuator
4
Air intake link
5
Polyurethane (1)
6
Polyurethane (2)
7
Polyurethane (3)
8
Polyurethane (4)
9
Polyurethane (5)
10
Polyurethane (6)
11
Polyurethane (7)
12
Blower case (2)
13
Blower case (1)
14
Blower case assembly

2.  Assemble in the reverse order of disassembly.


R.H.D.

Caution
•  Apply only the specified grease to the link. Otherwise abnormal noise or improper operation may result.

1.  Disassemble in the order indicated in the table.

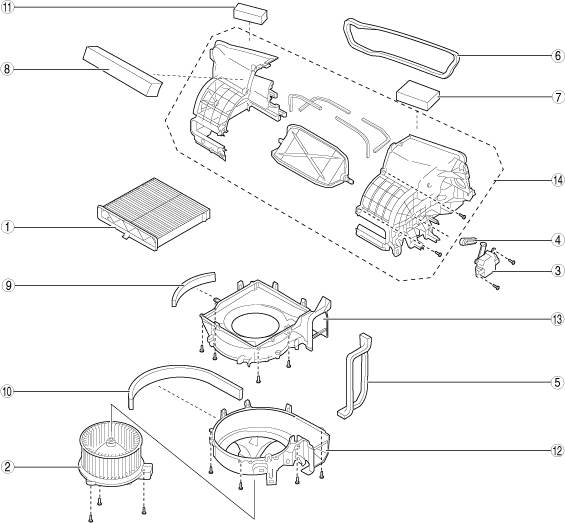

am3zzw00028174

1
Air filter
2
Blower motor
3
Air intake actuator
4
Air intake link
5
Polyurethane (1)
6
Polyurethane (2)
7
Polyurethane (3)
8
Polyurethane (4)
9
Polyurethane (5)
10
Polyurethane (6)
11
Polyurethane (7)
12
Blower case (2)
13
Blower case (1)
14
Blower case assembly

2.  Assemble in the reverse order of disassembly.


L.H.D. (Chinese Specs.)

Caution
•  Apply only the specified grease to the link. Otherwise abnormal noise or improper operation may result.

1.  Disassemble in the order indicated in the table.

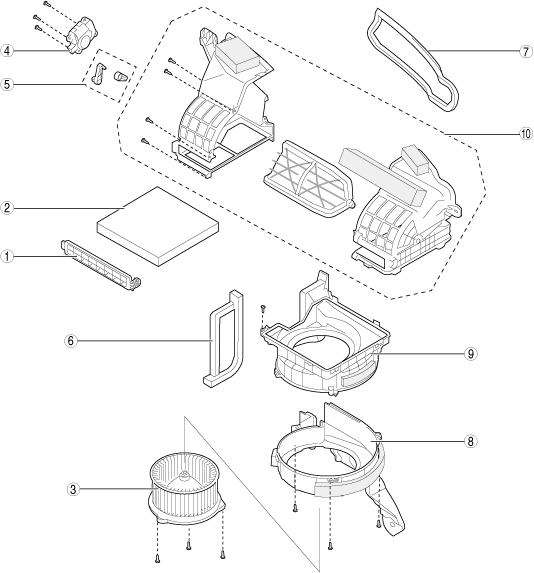

am3zzw00035988

1
Cover
2
Air filter
3
Blower motor
4
Air intake actuator
5
Air intake link
6
Polyurethane (1)
7
Polyurethane (2)
8
Blower case (2)
9
Blower case (1)
10
Blower case assembly

2.  Assemble in the reverse order of disassembly.
