REFRIGERANT LINE REMOVAL/INSTALLATION [SKYACTIV-G 2.0, SKYACTIV-G 2.5]

id071100803037

Replacement Part

Cooler hose (HI)

1.  Disconnect the negative battery terminal.

2.  Discharge the refrigerant. (See REFRIGERANT RECOVERY.)

3.  Remove the plug hole plate

4.  Disconnect the connector.

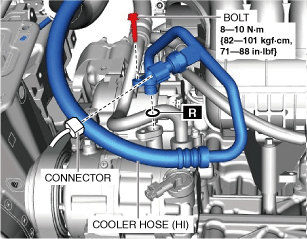

am3zzw00021356

5.  Remove the bolt. (See Refrigerant Line Removal Note.)

6.  Disconnect the cooler hose (HI). Do not allow compressor oil to spill.

Caution

•  If moisture or foreign matter enters the refrigeration cycle, cooling ability will be lowered and abnormal noise will occur. Always immediately plug all open fittings after removing any refrigeration cycle parts to keep moisture or foreign matter out of the cycle.

7.  Remove the bolt. (See Refrigerant Line Removal Note.)

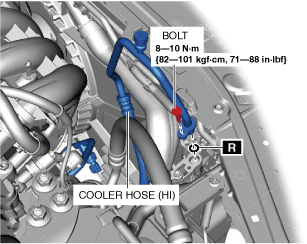

am3zzw00021357

8.  Remove the cooler hose (HI). Do not allow compressor oil to spill.

Caution

•  If moisture or foreign matter enters the refrigeration cycle, cooling ability will be lowered and abnormal noise will occur. Always immediately plug all open fittings after removing any refrigeration cycle parts to keep moisture or foreign matter out of the cycle.

9.  Install in the reverse order of removal. (See Refrigerant Line Installation Note (1).) (See Refrigerant Line Installation Note (2).)

10.  Perform the refrigerant system performance test.

Cooler hose (LO)

1.  Disconnect the negative battery terminal.

2.  Discharge the refrigerant. (See REFRIGERANT RECOVERY.)

3.  Remove the plug hole plate

4.  Remove the bolt.

am3zzw00032061

5.  Disconnect the engine ground.

6.  Remove the nut.

7.  Remove the bolt. (See Refrigerant Line Removal Note.)

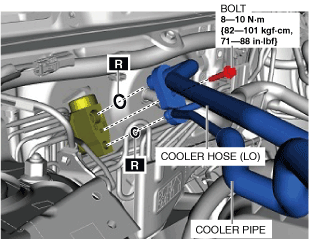

am3zzw00021359

8.  Disconnect the cooler hose (LO) and cooler pipe. Do not allow compressor oil to spill.

Caution

•  If moisture or foreign matter enters the refrigeration cycle, cooling ability will be lowered and abnormal noise will occur. Always immediately plug all open fittings after removing any refrigeration cycle parts to keep moisture or foreign matter out of the cycle.

9.  Remove the bolt. (See Refrigerant Line Removal Note.)

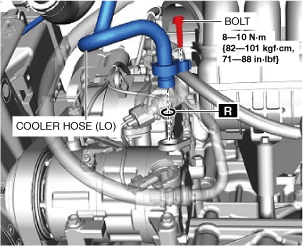

am3zzw00021360

10.  Disconnect the cooler hose (LO). Do not allow compressor oil to spill.

Caution

•  If moisture or foreign matter enters the refrigeration cycle, cooling ability will be lowered and abnormal noise will occur. Always immediately plug all open fittings after removing any refrigeration cycle parts to keep moisture or foreign matter out of the cycle.

11.  Remove the cooler hose (LO). Do not allow compressor oil to spill.

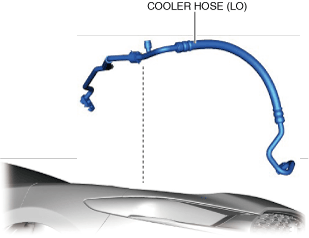

am3zzw00021361

12.  Install in the reverse order of removal. (See Refrigerant Line Installation Note (1).) (See Refrigerant Line Installation Note (2).)

13.  Perform the refrigerant system performance test.

Cooler pipe

1.  Disconnect the negative battery terminal.

2.  Discharge the refrigerant. (See REFRIGERANT RECOVERY.)

3.  Remove the plug hole plate

4.  Remove the bolt.

am3zzw00032061

5.  Disconnect the engine ground.

6.  Remove the nut.

7.  Remove the bolt. (See Refrigerant Line Removal Note.)

am3zzw00021359

8.  Disconnect the cooler hose (LO) and cooler pipe. Do not allow compressor oil to spill.

Caution

•  If moisture or foreign matter enters the refrigeration cycle, cooling ability will be lowered and abnormal noise will occur. Always immediately plug all open fittings after removing any refrigeration cycle parts to keep moisture or foreign matter out of the cycle.

9.  Remove the coolant reserve tank.

10.  Disconnect the refrigerant pressure sensor connector.

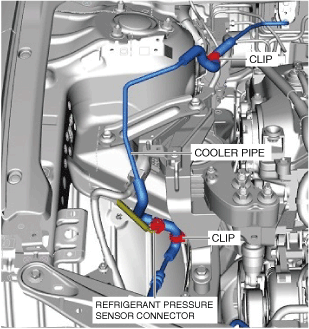

am3zzw00021362

11.  Remove the clips.

12.  Remove the bolt. (See Refrigerant Line Removal Note.)

am3zzw00021363

13.  Disconnect the cooler pipe. Do not allow compressor oil to spill.

Caution

•  If moisture or foreign matter enters the refrigeration cycle, cooling ability will be lowered and abnormal noise will occur. Always immediately plug all open fittings after removing any refrigeration cycle parts to keep moisture or foreign matter out of the cycle.

14.  Remove the cooler pipe. Do not allow compressor oil to spill.

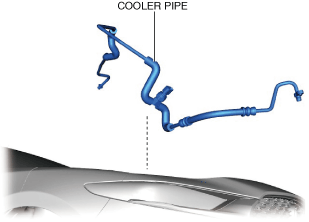

am3zzw00021364

15.  Install in the reverse order of removal. (See Refrigerant Line Installation Note (1).) (See Refrigerant Line Installation Note (2).)

16.  Perform the refrigerant system performance test.

Refrigerant Line Removal Note

Caution

•  When securing the block with pliers, wrap a clean cloth around the block. If the block is secured with pliers directly, it could be damaged.

1.  Disconnect the block joint type pipes by grasping the female side of the block with pliers or similar tool and holding firmly, then tighten the connection bolt or nut.

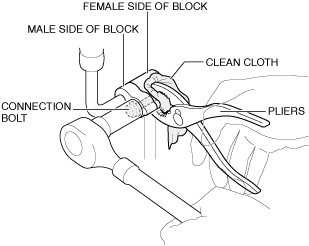

am3zzw00021365

Refrigerant Line Installation Note (1)

1.  Apply compressor oil to the O-rings and connect the joints.

2.  Tighten the joint bolt by hand.

Caution

•  When securing the block with pliers, wrap a clean cloth around the block. If the block is secured with pliers directly, it could be damaged.

3.  Connect the block joint type pipes by grasping the female side of the block with pliers or similar tool and holding firmly, then tighten the connection bolt or nut.

am3zzw00021365

Refrigerant Line Installation Note (2)

1.  After replacing the refrigerant line, add compressor oil to the refrigeration cycle.

Replaced refrigerant line	Supplemental compressor oil amount (approx. quantity)
Cooler Hose (HI)	2 ml {2 cc, 0.07 US fl oz}
Cooler Hose (LO)	3 ml {3 cc, 0.1 US fl oz}
Cooler Pipe	1 ml {1 cc, 0.03 US fl oz}
