ACTUATOR [FULL-AUTO AIR CONDITIONER (E)]

id0740a10061y2

Air Mix Actuator

Purpose

•  The air mix actuator moves the air mix door in the A/C unit to adjust the temperature of the air blown from the air vent.

Function

Door open/close function

•  The door open/close function opens/closes the air mix door in the HOT or COLD positions.

Door position detection function

•  The door position detection function fluctuates the potentiometer voltage value which is linked to the air mix actuator motor drive.

Structure/construction

•  A potentiometer-type air mix actuator has been adopted.

•  The driver-side air mix actuator is located on the driver’s side of the A/C unit.

•  The passenger-side air mix actuator is located on the passenger’s side of the A/C unit.

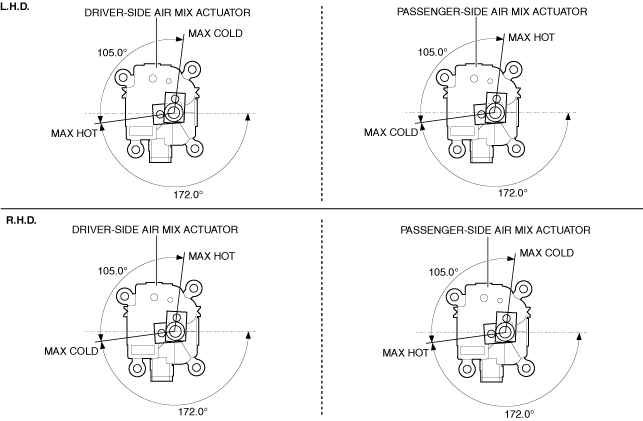

•  The operation range of the air mix actuator is as indicated in the diagram.

am3zzn00008465

Operation

•  For the air mix actuator operation, refer to the [FULL-AUTO AIR CONDITIONING SYSTEM [FULL-AUTO AIR CONDITIONER]]. (See FULL-AUTO AIR CONDITIONER SYSTEM [FULL-AUTO AIR CONDITIONER (E)].)

Airflow Mode Actuator

Purpose

•  The airflow mode actuator moves the airflow mode door in the A/C unit to switch the air vent.

Function

Door open/close function

•  The door open/close function opens/closes the airflow mode door in the VENT, BI-LEVEL, HEAT, DEF/HEAT, or DEFROSTER positions.

Door position detection function

•  The door position detection function fluctuates the potentiometer voltage value which is linked to the airflow mode actuator motor drive.

Structure/construction

•  A potentiometer-type airflow mode actuator has been adopted.

•  The airflow mode actuator is located on the passenger’s side of the A/C unit.

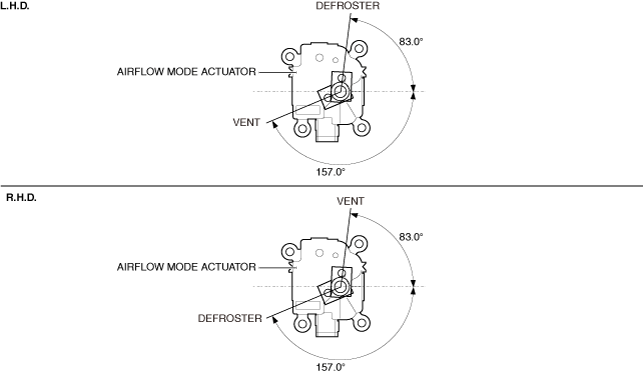

•  The operation range of the airflow mode actuator is as indicated in the diagram.

am3zzn00008466

Operation

•  For the airflow mode actuator operation, refer to the [FULL-AUTO AIR CONDITIONING SYSTEM [FULL-AUTO AIR CONDITIONER]]. (See FULL-AUTO AIR CONDITIONER SYSTEM [FULL-AUTO AIR CONDITIONER (E)].)

Air Intake Actuator

Purpose

•  The air intake actuator moves the air intake door in the blower unit to switch the air intake port.

Function

Door open/close function

•  The door open/close function opens/closes the air intake door in the FRESH or RECIRCULATE positions.

Door position detection function

•  The door position detection function fluctuates the potentiometer voltage value which is linked to the air intake actuator motor drive.

Structure/construction

•  A potentiometer-type air intake actuator has been adopted.

•  The air intake actuator is located on the blower unit.

•  The operation range of the air intake actuator is as indicated in the diagram.

am3zzn00008467

Operation

•  For the air intake actuator operation, refer to the [FULL-AUTO AIR CONDITIONING SYSTEM [FULL-AUTO AIR CONDITIONER]]. (See FULL-AUTO AIR CONDITIONER SYSTEM [FULL-AUTO AIR CONDITIONER (E)].)

Rear Vent Actuator

Purpose

•  The rear vent actuator moves the rear vent door in the A/C case to switch the rear vent port.

Function

Door open/close function

•  The door open/close function opens/closes the rear vent door in the VENT, BI-LEVEL, HEAT, DEF/HEAT, or DEFROSTER positions.

Door position detection function

•  The door position detection function fluctuates the potentiometer voltage value which is linked to the rear vent actuator motor drive.

Structure/construction

•  A potentiometer-type rear vent actuator has been adopted.

•  The rear vent actuator is located on the A/C case.

•  The operation range of the rear vent actuator is as indicated in the diagram.

am3zzn00008468

Operation

•  For the rear vent actuator operation, refer to the [FULL-AUTO AIR CONDITIONING SYSTEM [FULL-AUTO AIR CONDITIONER]]. (See FULL-AUTO AIR CONDITIONER SYSTEM [FULL-AUTO AIR CONDITIONER (E)].)
