FRONT AIR BAG MODULE [TWO-STEP DEPLOYMENT CONTROL SYSTEM]

id0810b1503000

Driver-side Air Bag Module

Purpose

•  When the vehicle receives an impact from a frontal or frontal offset collision, the driver-side air bag module operates (deploys) the air bag to mediate the impact to the head and face of the driver.

Function

•  When the driver-side air bag module receives an impact from a frontal or frontal offset collision, the air bag is operated (deployed) by the operation signal sent from the SAS control module.

am3zzn00007504

Structure/construction

•  The driver-side air bag module is located in the center of the steering wheel.

•  The driver-side air bag module consists of the inflator and air bag.

•  The inflator consists of the igniter, ignition agent, gas-generating agent and the filter.

am3zzn00008503

Operation

Inflator operation

•  The driver-side air bag module operates (deploys) the air bag by activating the internal inflator.

•  The inflator operates (deploys) in the following order:

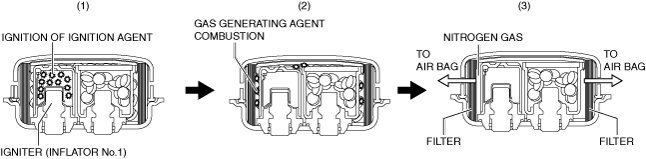

Inflator No.1

1.  When the driver-side air bag module receives an operation (deployment) signal from the SAS control module, the igniter built into inflator No.1 builds up heat and ignites the inflation agent.

2.  The ignition of the inflation agent causes the combustion of a gas-generating agent which releases nitrogen gas.

3.  The nitrogen gas is cooled at the filter and the filtrate is injected into the air bag.

am3zzn00008504

Inflator No.2

1.  When the driver-side air bag module receives an operation (deployment) signal from the SAS control module, the igniter built into inflator No.2 builds up heat and ignites the inflation agent.

2.  The ignition of the inflation agent causes the combustion of a gas-generating agent which releases nitrogen gas.

3.  The nitrogen gas is cooled at the filter and the filtrate is injected into the air bag.

am3zzn00008505

Passenger-side Air Bag Module

Purpose

•  When the vehicle receives an impact from a frontal or frontal offset collision, the passenger-side air bag module operates (deploys) the air bag to mediate the impact to the head and face of the front passenger.

Function

•  When the passenger-side air bag module receives an impact from a frontal or frontal offset collision, the air bag is operated (deployed) by the operation signal sent from the SAS control module.

am3zzn00007506

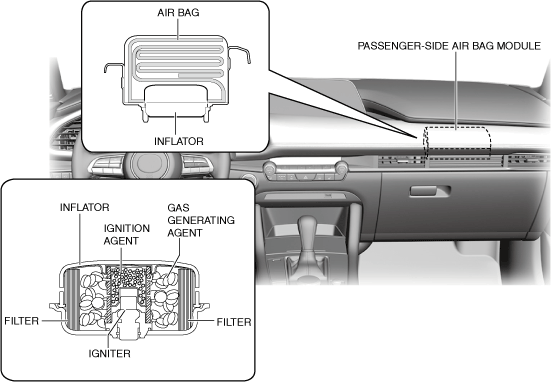

Structure/construction

•  The passenger-side air bag module is located in the dashboard.

•  The passenger-side air bag module consists of the inflator and air bag.

•  The inflator consists of the igniter, ignition agent, gas-generating agent and the filter.

am3zzn00009276

Operation

•  The passenger-side air bag module operates (deploys) the air bag by activating the internal inflator.

•  The inflator operates (deploys) in the following order:

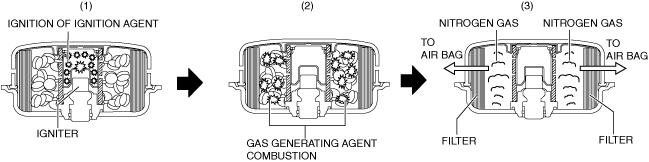

1.  When an operation (deployment) signal is received from the SAS control module, the igniter built into the inflator generates heat and ignites the ignition agent.

2.  The ignition of the ignition agent causes the combustion of a gas generating agent which forms nitrogen gas.

3.  The nitrogen gas is cooled at the filter and the filtrate is injected into the air bag.

am3zzn00007508
