KNEE AIR BAG MODULE [TWO-STEP DEPLOYMENT CONTROL SYSTEM]


id0810b1503100


Purpose

•  When the vehicle receives an impact from a frontal or frontal offset collision, the knee air bag module operates (deploys) the air bag to mediate the impact to the legs of the driver.

Function

•  When the vehicle receives an impact from a frontal or frontal offset collision, the knee air bag module operates (deploys) the air bag based on the operation signal sent from the SAS control module.
am3zzn00007509

Structure/Construction

•  The knee air bag module is located under the driver’s lower panel.
•  The knee air bag module consists of the inflator and air bag.
•  The inflator consists of the initiator, gas-generating agent, charged gas, closure discs, and diffuser.
am3zzn00009277

Operation

•  The knee air bag module operates (deploys) the air bag by activating the internal inflator.

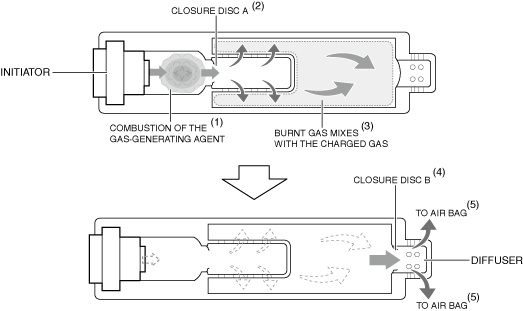

•  The inflator operates in the following order:
1.  When an operation (deployment) signal is received from the SAS control module, the initiator ignites.
2.  The ignition of the initiator causes the combustion of the gas-generating agent which generates gas (1).
3.  The generated burnt gas shatters closure disc A (2).
4.  The burnt gas mixes with the charged gas (3) and shatters closure disc B (4).
5.  The mixed gas passes through the diffuser and is injected into the air bag.
