CRASH ZONE SENSOR [STANDARD DEPLOYMENT CONTROL SYSTEM]

id0810b2511300

Purpose

• The crash zone sensor detects an impact during a frontal or frontal offset collision to the vehicle.

Function

• The crash zone sensor converts the detected impact to an electrical signal.

Structure/Construction

• The crash sensor is built into the crash zone sensor.

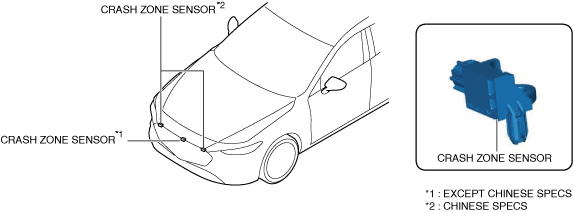

• The crash zone sensor is installed to the shroud panel of the front bumper backside.

am3zzn00010022

Operation

• For the crash zone sensor operation, refer to the [AIR BAG SYSTEM [STANDARD DEPLOYMENT CONTROL SYSTEM - MEXICO SPEC.]]. (See AIR BAG SYSTEM [STANDARD DEPLOYMENT CONTROL SYSTEM].)
