BUCKLE SWITCH [(E)]
id0811005010x2
Purpose
• The buckle switch signals each module as to whether the seat belt tongue is inserted or not.
Function
• The buckle switch sends a seat belt status signal to each module (fastened or unfastened).
|
Buckle
|
Destination
|
|
Front buckle (driver-side)
|
Dash-electrical supply unit
|
|
Front buckle (passenger-side)
|
Sophisticated airbag sensor (SAS) control module
|
|
Rear buckle
|
Electrical supply unit (ESU)
|
• The buckle switch turns on (contact point: Closed)/off (contact point: Open) according to the seat belt tongue insertion condition.
Construction/Operation
• The buckle switch is integrated with the following buckles.
-
― Front buckle (driver-side, passenger-side)
― Rear buckle

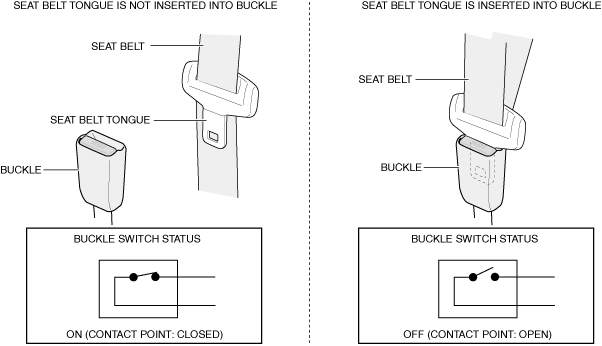

• When the seat belt tongue is not inserted into the buckle, the switch turns on (contact point: Closed).
• When the seat belt tongue is inserted into the buckle, the switch turns off (contact point: Open).
