FUEL-FILLER LID REMOVAL/INSTALLATION

id091000800100

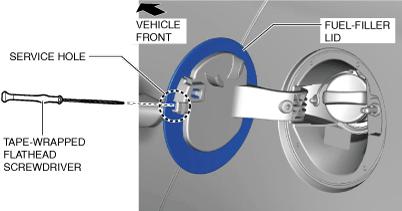

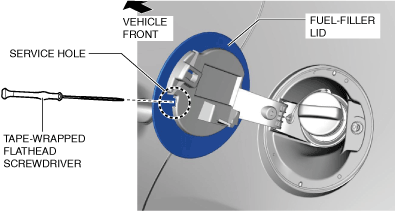

1.  Insert a tape-wrapped flathead screwdriver into the service hole.

4SD

am3zzw00029214

5HB

am3zzw00029215

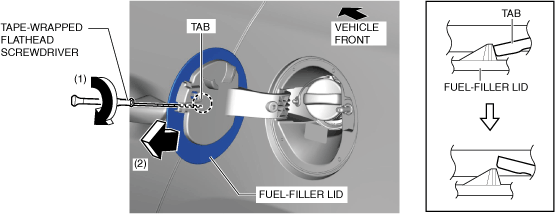

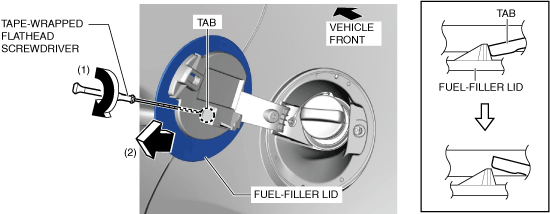

2.  Move the tape-wrapped flathead screwdriver in the direction of arrow (1) shown in the figure and detach the tab.

4SD

am3zzw00023179

5HB

am3zzw00029216

3.  Move the fuel-filler lid in the direction of arrow (2) shown in the figure with the tab left detached, and remove the fuel-filler lid.

4.  Install in the reverse order of removal.
