HOOD DISASSEMBLY/ASSEMBLY [(E)]

id0910009653x2

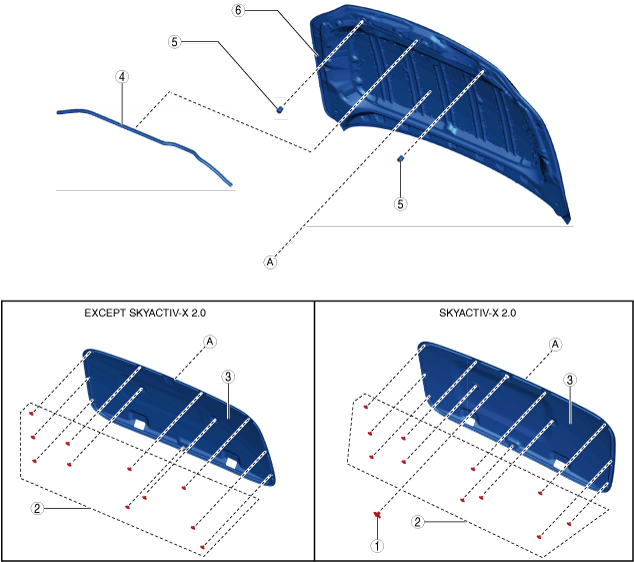

1.  Disassemble in the order indicated in the table.

am3zzw00035251

1	Clip (SKYACTIV-X 2.0)
2	Fastener
3	Hood insulator
4	Shroud seal weatherstrip
5	Stop rubber
6	Hood component

2.  Assemble in the reverse order of disassembly.
