DOOR ADJUSTMENT

id091100521100

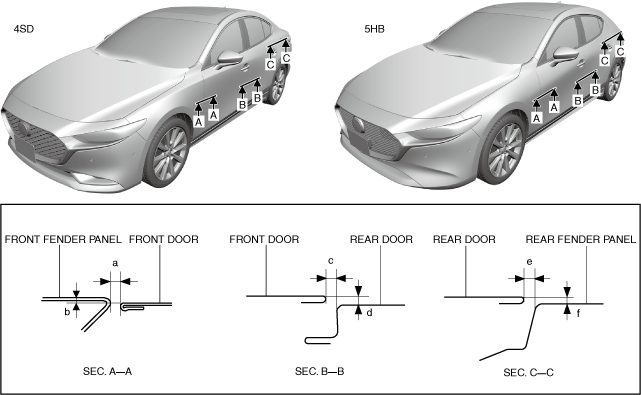

1. Measure the gap and height difference between the door and the body.

am3zzw00029695

Standard clearance (4SD)

a: 2.3—4.0 mm {0.10—0.15 in}

b: –1.1—0.6 mm {–0.04—0.02 in}

c: 2.5—4.3 mm {0.10—0.16 in}

d: –0.8—1.2 mm {–0.03—0.04 in}

e: 2.0—4.0 mm {0.08—0.15 in}

f: –1.0—1.0 mm {–0.039—0.039 in}

Standard clearance (5HB)

a: 2.3—4.0 mm {0.10—0.15 in}

b: –1.1—0.6 mm {–0.04—0.02 in}

c: 2.5—4.3 mm {0.10—0.16 in}

d: –0.8—1.2 mm {–0.03—0.04 in}

e: 2.0—4.0 mm {0.08—0.15 in}

f: –1.0—1.0 mm {–0.039—0.039 in}

• If the measured value exceeds the standard clearance, adjust the door using the following procedure:

1. Loosen the door hinge installation bolts and adjust the door.

2. Tighten the door hinge installation bolts. (See FRONT DOOR REMOVAL/INSTALLATION.) (See REAR DOOR REMOVAL/INSTALLATION.)

3. If the door does not open/close smoothly, adjust it by loosening the door lock striker installation screw. (See DOOR LOCK STRIKER ADJUSTMENT.)

4. Spray or pour water on the door and surrounding area using a hose or high pressure water pressure car wash and verify that there is no water leakage.

5. If the front door is adjusted, perform the 360° view monitor system aiming. (with 360° view monitor system) (See 360°VIEW MONITOR SYSTEM AIMING.)
