LIFTGATE ADJUSTMENT

id091100521400

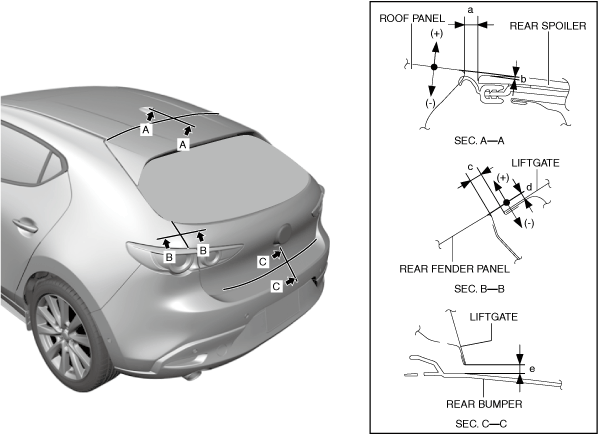

1. Measure the gap and height difference between the liftgate and the body.

am3zzw00029687

Standard clearance

a: 4.5—7.5 mm {0.18—0.29 in}

b: –2.5—0.5 mm {–0.09—0.01 in}

c: 3.5—5.5 mm {0.14—0.21 in}

d: –1.1—0.9 mm {–0.04—0.03 in}

e: 4.0—8.0 mm {0.16—0.31 in}

• If the measured value exceeds the standard clearance, adjust the liftgate using the following procedure:

1. Loosen the liftgate hinge installation bolts and adjust the liftgate.

2. Tighten the liftgate hinge installation bolts. (See LIFTGATE REMOVAL/INSTALLATION.)

3. If the liftgate does not open/close smoothly, adjust it by loosening the liftgate lock striker installation screw. (See LIFTGATE LOCK STRIKER REMOVAL/INSTALLATION.)

4. Spray or pour water on the door and surrounding area using a hose or high pressure water pressure car wash and verify that there is no water leakage.
