POWER WINDOW SUBSWITCH [(E)]
id0912000109x2
Purpose
• Each door glass except for the driver-side can be opened/closed with occupant seated in the cabin using the power window subswitch.
Function
Manual
-
• When the power window subswitch is operated for manual open/close operation, it sends a manual open/close signal to the door-electrical supply unit.
Auto
-
• When the power window subswitch is operated for auto open/close operation, it sends an auto open/close signal to the door-electrical supply unit.
Construction
• The power window subswitch is equipped on the front passenger side and the rear passenger sides.
Operation (Example: front passenger's auto close operation)

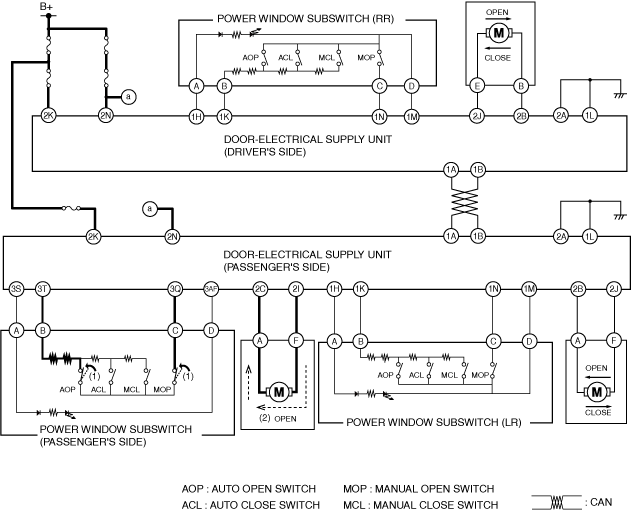

• When the power window subswitch is operated for an auto close operation, the contact points of the auto close switch and the manual close switch turn on (1).
• When the door-electrical supply unit passenger detects an auto open signal, the power window motor (passenger’s side) performs an auto open operation (2).
L.H.D.
R.H.D.
