POWER OUTER MIRROR [(E)]

id0912000113x2


Outline

•  The power outer mirror moves the outer mirror glass in the up/down and left/right directions using the up/down adjustment motor and left/right adjustment motor.
•  The power outer mirror moves the outer mirror in the retract/return directions using the retract/return motor. (With retractable outer mirror)

Function

•  The up/down adjustment motor and left/right adjustment motor turn clockwise (down/right direction) or counterclockwise (up/left direction).
•  The retract/return motor turns clockwise (return direction (LH)/retract direction (RH)) or counterclockwise (retract direction (LH)/return direction (RH)). (With retractable outer mirror)

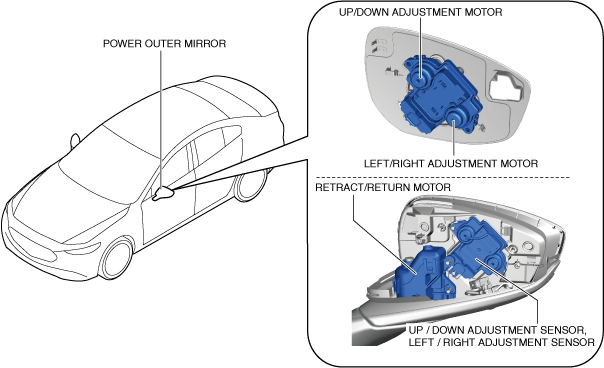

Construction

•  The following parts are built into the power outer mirror.
―  Up/down adjustment motor
―  Left/right adjustment motor
―  Retract/return motor (With retractable outer mirror)
―  Up/down adjustment sensor
―  Left/right adjustment sensor
am3zzn00008335

Operation

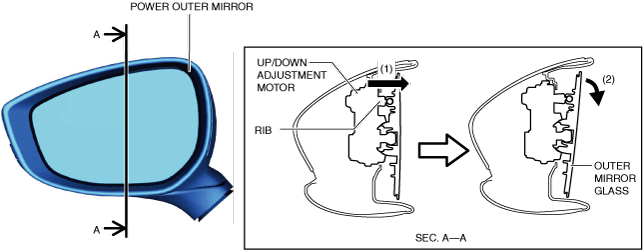

Up/down adjustment (Example: power outer mirror is operated downward)

1.  The rib operates (1) according to the motor operation.

2.  The outer mirror glass operates (2) in the downward direction according to the rib operation.

3.  When the outer mirror glass operates in the down direction, the resistance inside the up/down adjustment sensor increases.

am3zzn00007902


Left/right adjustment (Example: power outer mirror is operated in right direction)

1.  The rib operates (1) according to the motor operation.

2.  The outer mirror glass operates (2) in the right direction according to the rib operation.

3.  When the right side outer mirror glass operates in the right direction, the resistance inside the left/right adjustment sensor decreases.

When the left side outer mirror glass operates in the right direction, the resistance inside the left/right adjustment sensor increases.

am3zzn00007903

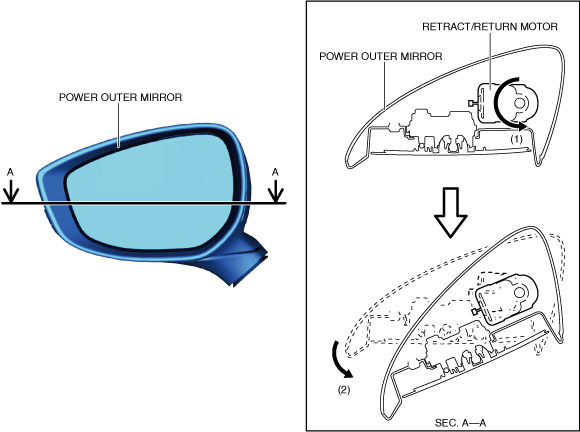

Retract/return (With retractable outer mirror) (Example: retract operation)

1.  When the motor rotates counterclockwise (1), the outer mirror operates in retract direction (2).

am3zzn00008336
