GLASS/WINDOWS/MIRRORS [(E)]
id0912000120x2
Outline
• A power window system has been adopted with which the door glass can be opened/closed electrically by operating the power window main switch or the power window subswitches.
• A power outer mirror system has been adopted with which the outer mirrors can be operated remotely using the power outer mirror switch.
• Outer mirror automatic folding has been adopted which retracts/returns the power outer mirrors in conjunction with the locking/unlocking of the doors. (With retractable outer mirror)
• A rear window defogger has been adopted with which rear window glass fogging can be cleared by pressing the rear window defogger switch.
• Heated outer mirrors have been adopted which remove fogging on the surface of the outer mirrors in conjunction with the rear window defogger. (With heated outer mirrors)
• An auto-dimming rearview mirror has been adopted which prevents the driver from being dazzled by light from vehicles at the rear for assured safety while driving at night. (With auto-dimming rearview mirror)
• A windshield wiper de-icer has been adopted which can warm the windshield area around the front wipers to de-ice them if they are stuck by ice. (With windshield wiper de-icer)
• Auto-dimming outer mirrors have been adopted which prevent the driver from being blinded by light from vehicles at the rear in conjunction with the auto-dimming rearview mirror. (With auto-dimming outer mirror)
Glass/window/mirror specification
|
|
Green glass
|
UV protection glass
|
Dark glass
|
|
Windshield
|
×*
|
—
|
—
|
|
Front door glass
|
×*
|
×*
|
—
|
|
Rear door glass
|
×*
|
×*
|
×*
|
|
Rear door quarter glass
|
×*
|
×*
|
×*
|
|
Rear window glass
|
×*
|
×*
|
×*
|
* :Availability depends on vehicle specification.
Structural View

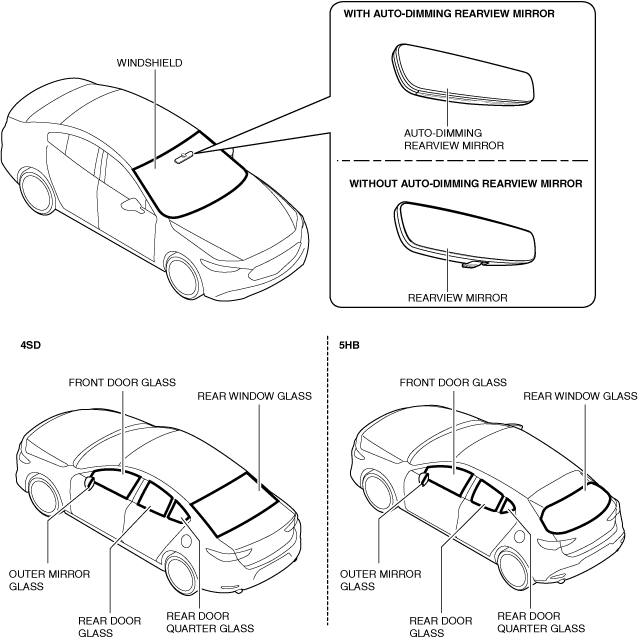

Glass/window/mirror

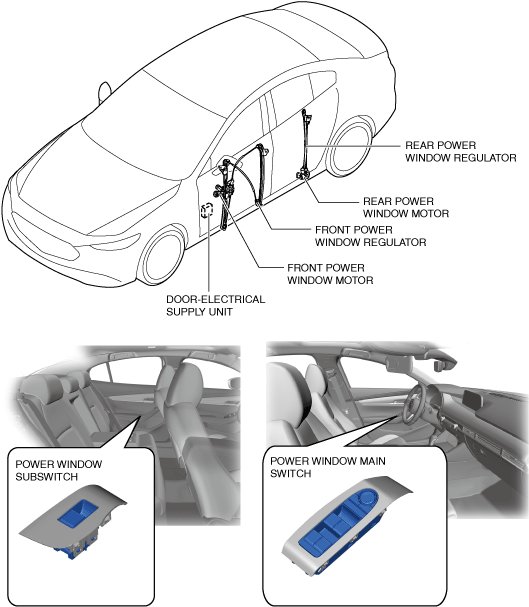

Power window system
Power outer mirror system
Rear window defogger/heated outer mirror/windshield wiper de-icer
