POWER WINDOW MAIN SWITCH [(E)]

id0912000123x2


Purpose

•  Transmits the power window main switch operation of the driver to the door-electrical supply unit.

Function

•  Manual
―  When the power window main switch is operated for manual open/close operation, it sends a manual open/close signal to the door-electrical supply unit.
•  Auto
―  When the power window main switch is operated for auto open/close operation, it sends an auto open/close signal to the door-electrical supply unit.
•  Power-cut
―  When the power-cut switch is pressed (contact point: Open), operation of the power window subswitches for the front and rear passenger seats is disabled.

Structure/Construction

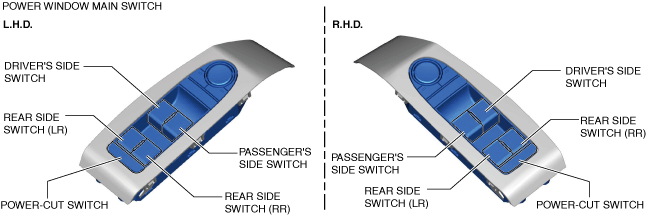

•  The power window main switch consists of the following parts:
―  Driver's side switch
―  Passenger's side switch
―  Rear side switch (LR)
―  Rear side switch (RR)
―  Power-cut switch
am3zzn00009458

Operation


Power window main switch (Example: manual close operation)

1.  Contact points for door glass opening/closing can be changed by operating the power window main switch.

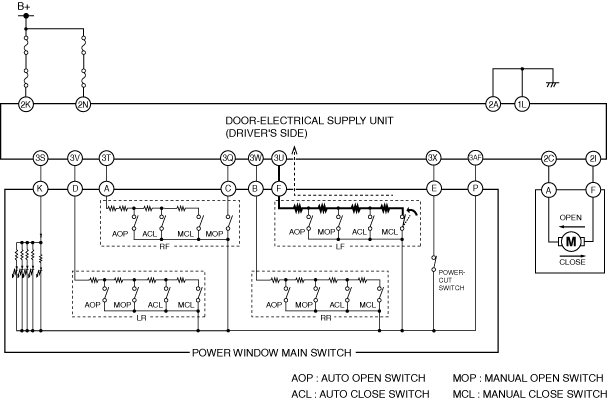

L.H.D.

am3zzn00009929

R.H.D.

am3zzn00009459


Power-cut switch

•  When the power-cut switch of the power window main switch is on (contact point: Open), current from each power window subswitch is interrupted.

L.H.D.

am3zzn00009930

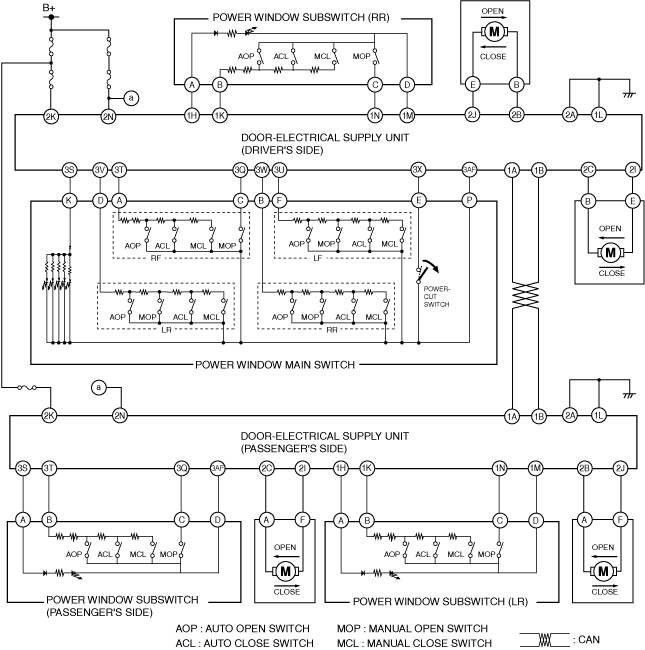

R.H.D.

am3zzn00009460
