AUTO-DIMMING REARVIEW MIRROR REMOVAL/INSTALLATION


id091200016000

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Remove the sensor cover. (See SENSOR COVER REMOVAL/INSTALLATION.)

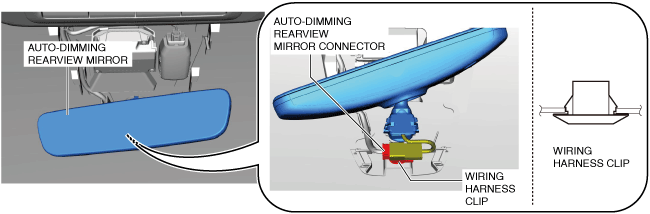

3.  Disconnect the auto-dimming rearview mirror connector.

am3zzw00029559

4.  Remove the wiring harness clip.

Caution
•  Detach the auto-dimming rearview mirror from the mirror base while holding the auto-dimming rearview mirror by hand. Otherwise, the auto-dimming rearview mirror may fall off and be damaged.

5.  Move the auto-dimming rearview mirror in the direction of the arrow shown in the figure and detach the auto-dimming rearview mirror from the mirror base.

am3zzw00037008

6.  Remove the auto-dimming rearview mirror. (See Auto-Dimming Rearview Mirror Installation Note.)

7.  Install in the reverse order of removal.


Auto-Dimming Rearview Mirror Installation Note

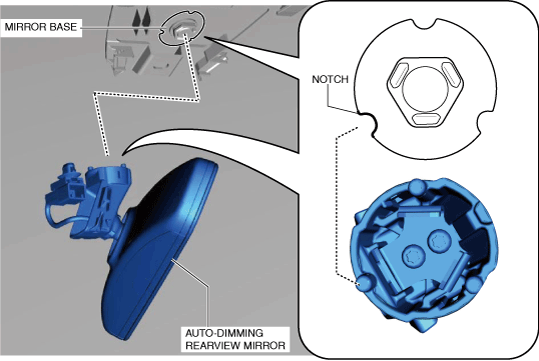

1.  Align the auto-dimming rearview mirror projections with the mirror base notches.

am3zzw00037009
