AUTO-DIMMING REARVIEW MIRROR INSPECTION [(E)]

id0912000161x2

Operational Inspection

1. Switch the ignition ON (engine off or on).

2. Move the vehicle to a place with a showroom level of brightness.

3. Verify that the indicator light is illuminated.

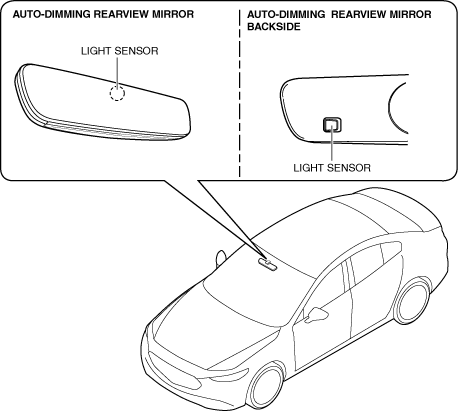

am3zzw00030713

4. Cover the front light sensor with a hand and verify that the mirror surface darkens when light is shone on the rear light sensor.

5. Remove your hand covering the front light sensor and verify that the mirror surface brightens.

• If the auto-dimming mirror does not operate, inspect the terminal voltage. (See Terminal Voltage Table (Reference).)

Terminal Voltage Table (Reference)

1. Remove the cover. (See FORWARD SENSING CAMERA (FSC) REMOVAL/INSTALLATION.)

2. Measure the voltage at each terminal.

• If the voltage is not as specified in the Terminal Voltage Table (Reference), inspect the parts under “Inspection item (s)” and related wiring harnesses.

― If the system does not work properly even though the inspection items or related wiring harnesses do not have any malfunction, replace the auto-dimming mirror.

am3zzw00026219

Terminal

Signal name

Connected to

Measured condition

Voltage (V)

Inspection item(s)

A

OEC(-)

Auto dimming outer mirror

Switch the ignition ON (engine on or off)

0—1.3

•  Auto dimming outer mirror

•  Related wiring harnesses

Switch the ignition OFF (LOCK)

1.0 or less

Detect the auto-dimming rearview mirror the level of the surrounding light and glare from vehicles at the rear using the light sensor.

0—1.3

B

GND

GND point

Under any condition

Approx. 0

•  GND point

•  Related wiring harnesses

C

—

—

—

—

—

D

R position signal

Indicator unit

R position

B+

•  Indicator unit

•  Related wiring harnesses

Except above

1.0 or less

E

—

—

—

—

—

F

—

—

—

—

—

G

OEC(+)

Auto dimming outer mirror

Switch the ignition ON (engine on or off)

0—1.3

•  Auto dimming outer mirror

•  Related wiring harnesses

Switch the ignition OFF (LOCK)

1.0 or less

Detect the auto-dimming rearview mirror the level of the surrounding light and glare from vehicles at the rear using the light sensor.

0—1.3

H

—

—

—

—

—

I

Power supply (IG1)

F47 15A fuse

Switch the ignition ON (engine on or off)

B+

•  F47 15A fuse

•  Related wiring harnesses

Switch the ignition OFF (LOCK)

1.0 or less

J

—

—

—

—

—

Terminal	Signal name	Connected to	Measured condition	Voltage (V)	Inspection item(s)
A	OEC(-)	Auto dimming outer mirror	Switch the ignition ON (engine on or off)	0—1.3	• Auto dimming outer mirror • Related wiring harnesses
			Switch the ignition OFF (LOCK)	1.0 or less
			Detect the auto-dimming rearview mirror the level of the surrounding light and glare from vehicles at the rear using the light sensor.	0—1.3
B	GND	GND point	Under any condition	Approx. 0	• GND point • Related wiring harnesses
C	—	—	—	—	—
D	R position signal	Indicator unit	R position	B+	• Indicator unit • Related wiring harnesses
D	R position signal	Indicator unit	Except above	1.0 or less	• Indicator unit • Related wiring harnesses
E	—	—	—	—	—
F	—	—	—	—	—
G	OEC(+)	Auto dimming outer mirror	Switch the ignition ON (engine on or off)	0—1.3	• Auto dimming outer mirror • Related wiring harnesses
			Switch the ignition OFF (LOCK)	1.0 or less
			Detect the auto-dimming rearview mirror the level of the surrounding light and glare from vehicles at the rear using the light sensor.	0—1.3
H	—	—	—	—	—
I	Power supply (IG1)	F47 15A fuse	Switch the ignition ON (engine on or off)	B+	• F47 15A fuse • Related wiring harnesses
I	Power supply (IG1)	F47 15A fuse	Switch the ignition OFF (LOCK)	1.0 or less	• F47 15A fuse • Related wiring harnesses
J	—	—	—	—	—
