POWER SEAT SYSTEM [(E)]

id0913002620x2

Outline

• The power seat system drives the electric motor, operates the front seats safely, and changes the driving posture to suit the occupant by operating the power seat switch.

• 10WAY power seats have been adopted on the driver's seat.

Function

• The 10WAY power seats are equipped with the following functions:

― Slide mechanism

― Recliner mechanism

― Lift mechanism

― Tilt mechanism

― Lumbar support mechanism

Slide mechanism

• The sliding function adjusts the front and back positions of the front seats.

am3zzn00010369

Recliner mechanism

• The recliner function adjusts the angle of the front seat backs.

am3zzn00008012

Tilt mechanism

• The tilt function adjusts the height of the front part of the front seat cushions.

am3zzn00010370

Lift mechanism

• The lift function adjusts the height of the front seats.

am3zzn00010371

Lumbar support mechanism

• The lumbar support function adjusts the bulge amount of the lumbar area of the front seat backs.

am3zzn00010372

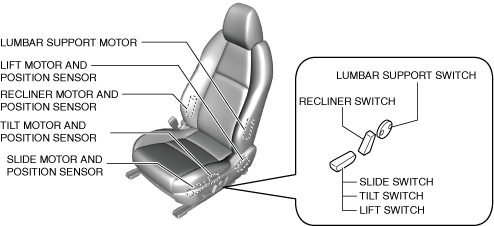

Structural View

am3zzn00009240

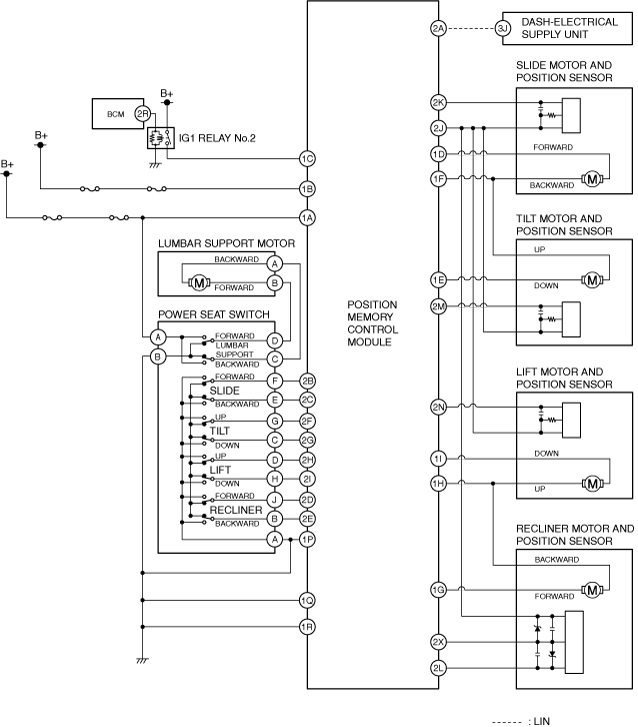

System Diagram

am3zzn00008017

Operation

Recliner operation (example: forward recline operation)

1. When the recliner switch of the power seat switch is operated forward, the recliner switch on signal is input to the position memory control module.

2. When the position memory control module receives the recliner switch on signal, power is supplied to the recliner motor.

3. When current flows to the recliner motor for forward motion, the motor drives to tilt the front seat back forward.

am6zzn00002886

Lift operation (example: lift up operation)

1. When the lift switch of the power seat switch is operated up, the lift switch on signal is input to the position memory control module.

2. When the position memory control module receives the lift switch on signal, power is supplied to the lift motor.

3. When current flows to the lift motor for lift-up motion, the motor drives to set the position of the front seat higher.

am6zzn00002888

Slide operation (example: forward slide operation)

1. When the slide switch of the power seat switch is operated forward, the slide switch on signal is input to the position memory control module.

2. When the position memory control module receives the slide switch on signal, power is supplied to the slide motor.

3. When current flows to the slide motor and position sensor for forward motion, the motor drives to slide the front seat forward.

am6zzn00002889

Tilt operation (example: tilt up operation)

1. When the tilt switch of the power seat switch is operated up, the tilt switch on signal is input to the position memory control module.

2. When the position memory control module receives the tilt switch on signal, power is supplied to the tilt motor.

3. When current flows to the tilt motor and position sensor for tilt-up motion, the motor drives to set the position of the front part of the front seat cushion higher.

am6zzn00002891

Lumbar support operation (example: forward operation)

1. When the lumbar support switch is operated (1) forward, current from the battery flows (2) to the lumbar support motor.

2. When current flows to the lumbar support motor for forward motion, the motor drives to set the bulge amount of the lumbar area of the front seat back.

am3zzn00010384
