REAR SEAT BACK REMOVAL/INSTALLATION

id091300912400

Caution

•  When performing the procedure with a rear seat back removed from the vehicle, perform the procedure on a clean cloth so as not to damage or dirty the seat.

Note

•  When removing the rear seat back from the vehicle or putting it back in, it can be performed easier by removing the head restraint.

4SD

1.  Remove the rear center seat belt anchor. (See REAR BUCKLE REMOVAL/INSTALLATION.)

2.  Fold the rear seat back.

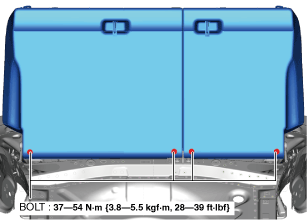

3.  Partially peel back the rear seat back trim and remove the bolts.

am3zzw00023852

4.  Remove the rear seat back.

5.  Install in the reverse order of removal.

5HB

1.  Remove the following part:

(1)  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

(2)  Rear center seat belt anchor (See REAR BUCKLE REMOVAL/INSTALLATION.)

2.  Fold the rear seat back.

3.  Partially peel back the rear seat back trim and remove the bolts.

am3zzw00023853

4.  Remove the rear seat back.

5.  Install in the reverse order of removal.
