SEAT WARMER CONTROL UNIT REMOVAL/INSTALLATION [(E)]


id0913009775x2


With Position Memory System

•  The seat warmer control unit is integrated with the position memory control module. When replacing the seat warmer control unit, refer to [POSITION MEMORY CONTROL MODULE REMOVAL/INSTALLATION]. (See POSITION MEMORY CONTROL MODULE REMOVAL/INSTALLATION [(E)].)

Without Position Memory System

1.  Remove the front seat installation bolts. (See FRONT SEAT REMOVAL/INSTALLATION [(E)].)

2.  Remove the front seat belt lower anchor.(See FRONT SEAT BELT REMOVAL/INSTALLATION.)

3.  Perform the following procedure. (Without Mazda M Hybrid)

(1)  Switch the ignition off.
(2)  Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

4.  Perform the following procedure. (With Mazda M Hybrid)

(1)  Verify if the ground plate needs to be disconnected and if it does, disconnect it. (See GROUND PLATE DISCONNECTION/CONNECTION.)

5.  Remove the front seat. (See FRONT SEAT REMOVAL/INSTALLATION [(E)].)

6.  Disconnect the seat warmer control unit connector.

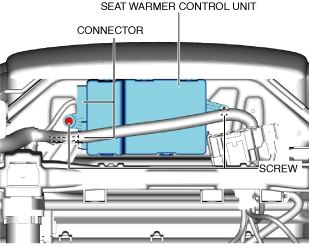

am3zzw00034648

7.  Remove the screws.

8.  Remove the seat warmer control unit.

9.  Install in the reverse order of removal.
