LIFTGATE OPENER SWITCH
id091400005900
Purpose
• Transmits the liftgate opener switch operation of the user to the electrical supply unit (ESU).
Function
• The liftgate opener switch ON signal is sent to the electrical supply unit (ESU) by operating the liftgate opener switch.
Construction, Operation

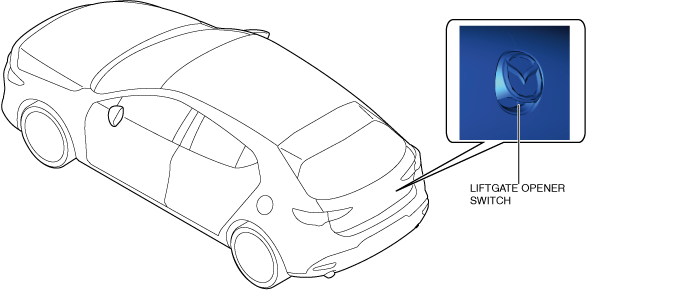

• Installed on the liftgate.
• While the liftgate opener switch is pressed, the switch turns on (contact point: closed).
