DOOR LOCK-LINK SWITCH [(E)]

id0914000088x2

Purpose

• Switches on/off in conjunction with a door lock knob lock/unlock operation, and detects the front door lock/unlock condition by the voltage which is changed by the door-electrical supply unit.

Function

• The door lock-link switch contact point changes in conjunction with the door lock knob lock/unlock operation.

Construction

• The door lock knob and door lock-link switch are connected by the door lock-link cable, and are built into the door latch and lock actuator.

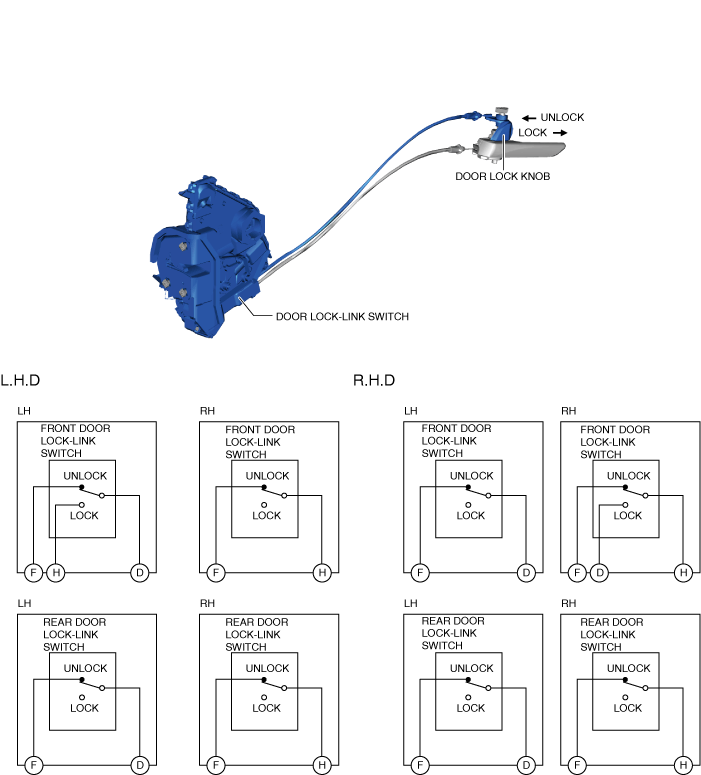

ac30zn00000424

Operation

Lock operation

• When the door lock knob is turned to the lock position, the door lock-link cable is pressed, and the door lock-link switch is switched to the lock side.

Unlock operation

• When the door lock knob is turned to the unlock position, the door lock-link cable is pulled, and the door lock-link switch is switched to the unlock side.
