LIFTGATE LOCK ACTUATOR

id091400109300

Purpose, Function

• The latch of the liftgate latch lever is released based on the signal from the electrical supply unit (ESU).

Construction

• Motor is built-in.

• The liftgate latch lever is installed to the liftgate latch and lock actuator.

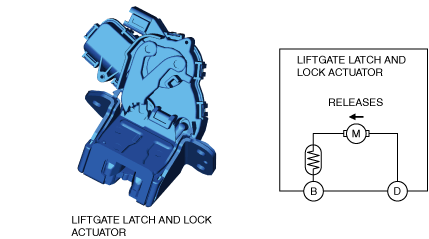

am3zzn00007896

Operation

1. The liftgate latch and lock actuator rotates the built-in motor based on the liftgate opener system operation signal from the electrical supply unit (ESU), and releases the latch of the liftgate latch lever.
