TRUNK LID OPENER SWITCH
id091400113900
Purpose
• Transmits the trunk lid opener switch operation of the user to the electrical supply unit (ESU).
Function
• The trunk lid opener switch ON signal is sent to the electrical supply unit (ESU) by operating the trunk lid opener switch.
Construction, Operation

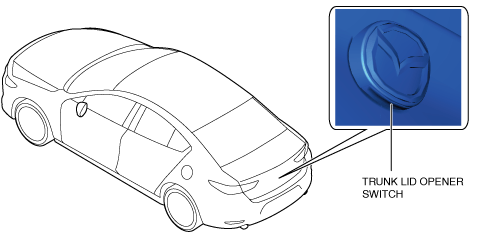

• Installed on the trunk lid.
• While the trunk lid opener switch is pressed, the switch turns on (contact point: closed).
