WARNING/INDICATION/ALARM [SECURITY AND LOCKS]

id0914006099z8

Purpose

KEY warning light (red)

•  The KEY warning light (red) notifies the driver that the engine cannot be started, the remote transmitter is outside of the vehicle, or that there is a malfunction in the system.

Function

KEY warning light (red)

•  When a malfunction is detected in the keyless entry system or advanced keyless entry system, the KEY warning light (red) turns on.

―  A warning message in the center display is displayed when the KEY warning light (red) is turned on. For the display content, refer to the [CENTER DISPLAY] in the workshop manual.

•  The KEY warning light (red) flashes if the engine cannot be started and when the ignition is switched to ACC or ON (engine off or on) and the transmitter is taken outside of the vehicle. (See KEYLESS ENTRY SYSTEM [(E)].) (See ADVANCED KEYLESS ENTRY SYSTEM [(E)].) (See PUSH BUTTON START SYSTEM [KEYLESS ENTRY SYSTEM].) (See PUSH BUTTON START SYSTEM [ADVANCED KEYLESS ENTRY SYSTEM].)

Structure/Construction

am3zzn00008165

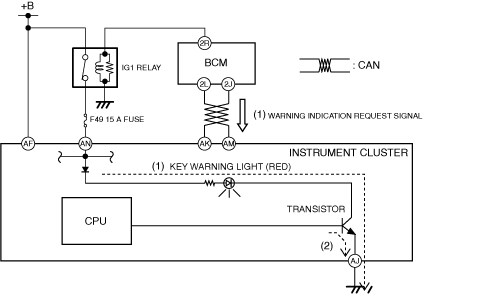

Operation

KEY warning light (red)

1.  The instrument cluster receives (1) the system condition display request signal or warning indication request signal from the body control module (BCM) via CAN communication.

2.  The instrument cluster turns the transistor on (2) intermittently for a system condition display request signal and continuously for a warning indication request signal.

3.  When the transistor is turned on intermittently, the KEY warning light (red) flashes (3), and when it is turned on continuously, the KEY warning light (red) turns on (3).

am3zzn00010391

Purpose

KEY indicator light (green)

•  The KEY indicator light (green) notifies the driver that the engine starting conditions have been met or that the remote transmitter battery voltage is depleted.

Security indicator light

•  The security indicator light notifies the driver that the immobilizer system is operating.

Function

KEY indicator light (green)

•  When the engine-starting conditions have been met, the KEY indicator light (green) turns on. (See PUSH BUTTON START SYSTEM [KEYLESS ENTRY SYSTEM].) (See PUSH BUTTON START SYSTEM [ADVANCED KEYLESS ENTRY SYSTEM].)

•  If the remote transmitter battery voltage is depleted, the KEY indicator light (green) flashes. (See KEYLESS ENTRY SYSTEM [(E)].) (See ADVANCED KEYLESS ENTRY SYSTEM [(E)].)

―  A warning message in the center display is displayed when the KEY indicator light (green) flashes. For the display content, refer to the [CENTER DISPLAY] in the workshop manual.

Security indicator light

•  If a malfunction is detected in the immobilizer system, the DTC can be verified by the flashing pattern of the security indicator light.

Structure/Construction

KEY indicator light (green)

•  The KEY warning light (red)/KEY indicator light (green) are built into the instrument cluster.

•  The KEY indication is displayed in the multi-information display.

am3zzn00008165

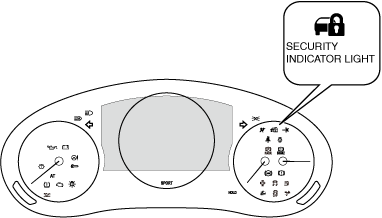

Security indicator light

•  The security indicator light is built into the instrument cluster.

am3zzn00008166

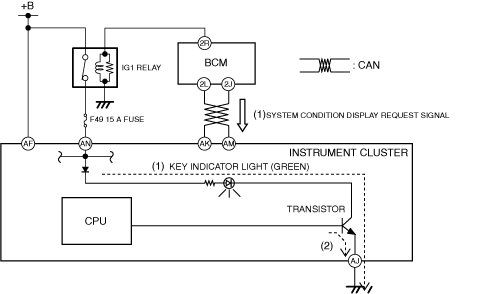

Operation

KEY indicator light (green)

1.  The instrument cluster receives (1) the system condition display request signal or battery voltage low indication request signal from the body control module (BCM) via CAN communication.

2.  The instrument cluster turns the transistor on (2) intermittently for a battery voltage low indication request signal and continuously for a system conditions indication request signal.

3.  When the transistor is turned on intermittently, the KEY indicator light (green) flashes (3), and when it is turned on continuously, the KEY indicator light (green) turns on (3).

am3zzn00010392

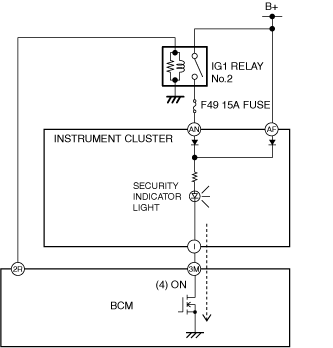

Security indicator light

1.  The body control module (BCM) turns the FET on (1) intermittently.

2.  When body control module (BCM) turns the FET on (1) intermittently, the security indicator light located on the instrument cluster flashes (2).

am3zzn00010393

•  When the immobilizer system is operating, it illuminates for 0.1 sec every approx. 2 sec.

am3zzn00009430

•  If the immobilizer system is normal, the security indicator light illuminates for approx. 3 sec and then turns off after the push button start is pressed.

am3zzn00009431

Purpose

Function

―  Driver’s door latch switch on signal (door open) is received with ignition switched to ACC

―  Remote transmitter cannot be detected inside vehicle when off signals for all door latch switches (doors closed) are received with ignition not switched OFF

Construction

Operation

1.  The body control module (BCM) outputs the keyless warning alarm sound signal (1) to the notification and warning speaker located inside the column.

2.  When the notification and warning speaker inputs the keyless warning alarm sound signal, it sounds the keyless warning alarm (2).

ac30zn00000882
