SUNROOF
id091500101000
Outline
Specification
Item |
Specification |
|
---|---|---|
Slide system
|
|
Inner slide
|
Opening measurement
|
(mm {in})
|
280 × 754 {11.0 × 29.6}
|
Tilt-up amount
|
(mm {in})
|
24—28 {1.0—1.1}
|
Opening/closing time
|
(s)
|
Slide: 3.0—6.0, Tilt: 0.5—1.5
|
Function
Tilt up/open/close
Initial setting
Structural View
am3zzn00006956
|

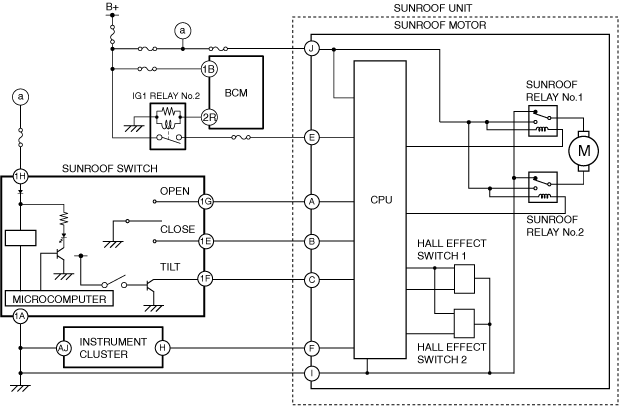

System Wiring Diagram
am3zzn00008052
|
Operation
Tilt up operation
1. When the sunroof switch is operated for tilt up operation, the CPU receives a tilt up signal (1).
2. When the CPU receives a tilt up signal, it turns on sunroof relay No.2 (2).
3. When sunroof relay No.2 is turned on, the sunroof motor starts tilt up operation (3).
4. When approx. 1 s. has elapsed after the sunroof motor was started, the timer control of the CPU turns off sunroof relay No.2 automatically to stop the tilt up operation.
am3zzn00008053
|

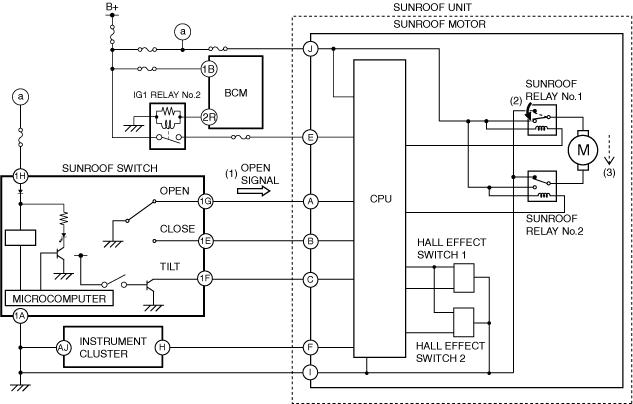

Open operation
1. When the sunroof switch is operated for an open operation, the CPU receives an open signal (1).
2. When the CPU receives an open signal, it turns on sunroof relay No.1 (2).
3. When sunroof relay No.1 is turned on, the sunroof motor starts the open operation (3).
am3zzn00008054
|

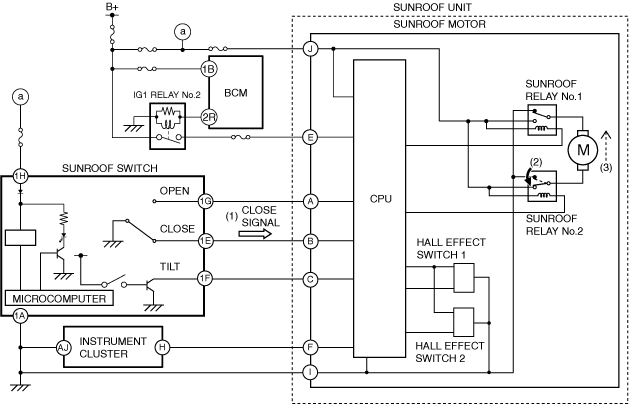

Close operation (glass panel open)
1. When the sunroof switch is operated for a close operation, the CPU receives a close signal (1).
2. When the CPU receives the close signal, it turns on sunroof relay No.2 (2).
3. When sunroof relay No.2 is turned on, the sunroof motor starts the close operation (3).
am3zzn00008055
|
Close operation (glass panel tilt up)
1. When the sunroof switch is operated for a close operation, the CPU receives a close signal (1).
2. When the CPU receives the close signal, it turns on sunroof relay No.1 (2).
3. When sunroof relay No.1 is turned on, the sunroof motor starts the close operation (3).
am3zzn00008056
|
