SUNROOF UNIT DISASSEMBLY/ASSEMBLY

id091500800800

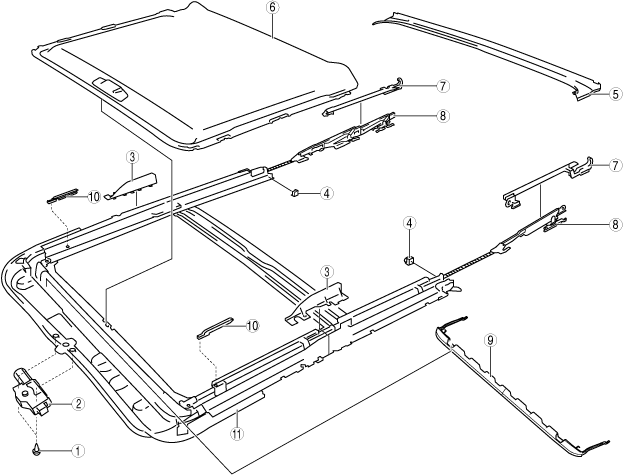

1.  Disassemble in the order indicated in the table.

ac3wzw00005497

1	Screw
2	Sunroof motor
3	Screen
4	Rear stopper
5	Drip rail
6	Sunshade (See Sunshade Disassembly Note.)
7	Decoration link (See Decoration Link Assembly Note.)
8	Front guide (See Front Guide Disassembly Note.)
9	Deflector
10	Set plate
11	Sunroof frame

2.  Assemble in the reverse order of disassembly.

Sunshade Disassembly Note

Caution

•  When removing the sunshade, the sunshade handle could interfere with the sunroof frame and cause part damage.

1.  Affix the protective tape to the position shown in the figure to prevent scratches and damage.

ac3wzw00005498

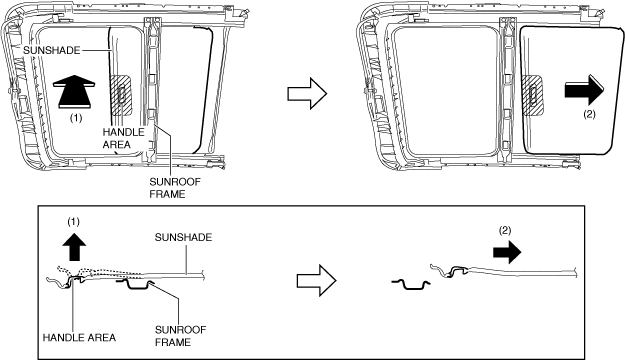

2.  Remove the sunshade while lifting it up in the direction of arrow (1) shown in the figure and sliding it in the direction of arrow (2).

ac3wzw00005499

Decoration Link Assembly Note

Caution

•  If the decoration link is assembled to a wrong position, the glass panel may stop at the wrong position and the part may be damaged.

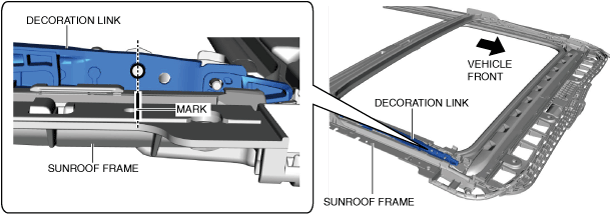

1.  Mark the position shown in the figure for correct positioning.

am3zzw00038077

Front Guide Disassembly Note

1.  To prevent the wire shown in the figure from coming off the rail, install while aligning the wire in the rail.

ac3wzw00005501
