SUNROOF MOTOR REMOVAL/INSTALLATION

id091500801800

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Remove the front map light. (See FRONT MAP LIGHT REMOVAL/INSTALLATION [(E)].)

3.  Disconnect the connector.

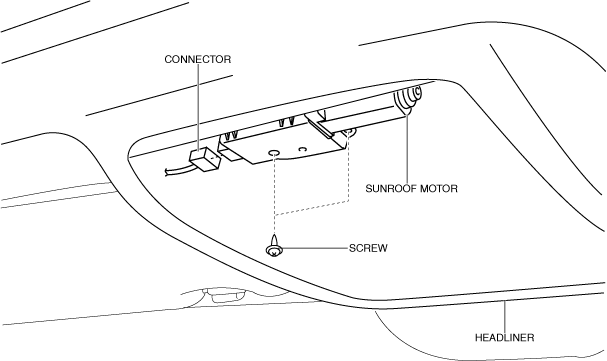

am3zzw00023874

4.  Remove the screws.

5.  Remove the sunroof motor.

6.  Install in the reverse order of removal.
