SAIL GARNISH REMOVAL/INSTALLATION

id091600451200

Replacement part

Clip

Quantity: 3

Location of use: Sail garnish

1. Fully open the front door glass.

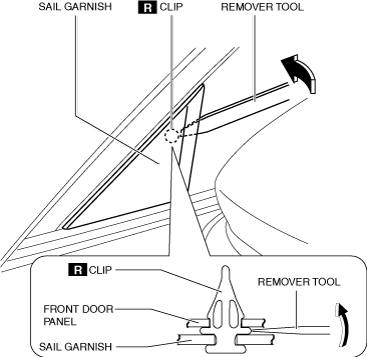

2. Insert a remover tool, move it in the direction of the arrow shown in the figure, and remove the clip.

am3zzw00029310

3. Insert a remover tool, move it in the direction of the arrow shown in the figure, remove the clips, and remove the sail garnish.

am3zzw00029311

4. When removing the corner bracket, perform the following procedure:

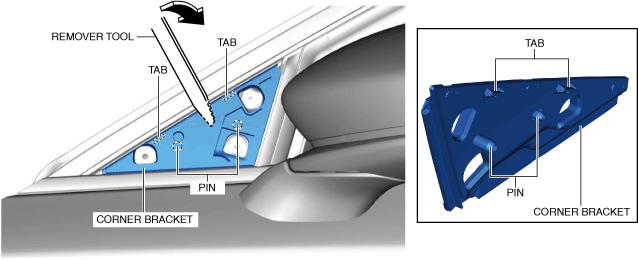

(1) Insert a remover tool, move it in the direction of the arrow shown in the figure, remove the pins and tabs, and remove the corner bracket.

am3zzw00023883

5. Install in the reverse order of removal.
