MUDGUARD REMOVAL/INSTALLATION

id091600467600

Front Mudguard

1.  Remove the bolt.

am3zzw00029316

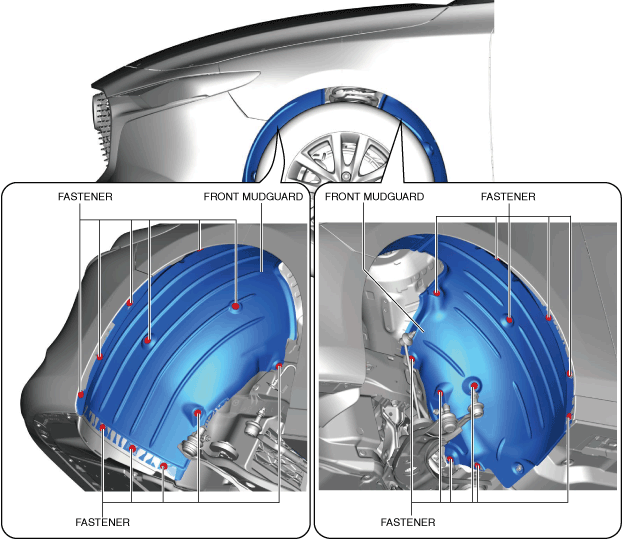

2.  Remove the fasteners.

am3zzw00029317

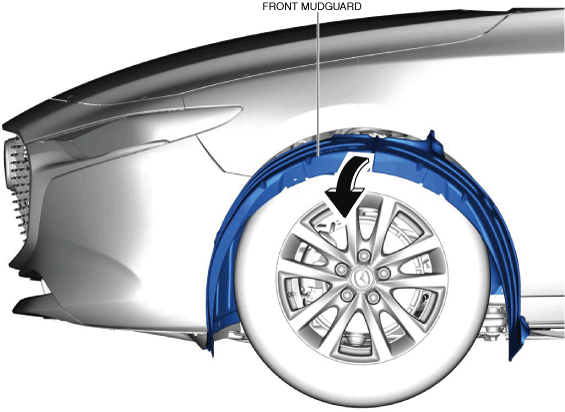

3.  Remove the front mudguard in the direction of the arrow shown in the figure.

am3zzw00023887

4.  Install in the reverse order of removal.

Rear Mudguard

1.  Remove the cap nuts.

LH

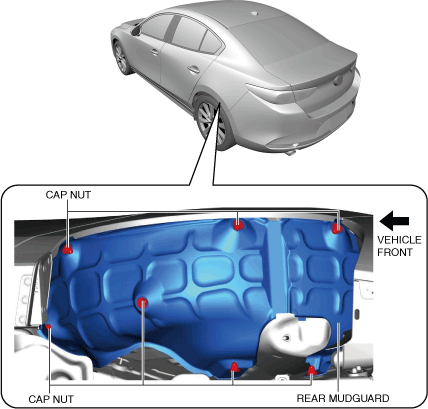

am3zzw00023888

RH

am3zzw00023889

2.  Remove the rear mudguard in the direction of the arrow shown in the figure.

am3zzw00023890

3.  Install in the reverse order of removal.
